WiFi

What Wi-Fi Help does in iOS on iPhone or iPad

17/01/2022 by

[ad_1]

It happens that when you run into a cafe for lunch, you find that the Wi-Fi connection speed is insufficient for comfortable work with the device on the Web. However, the user’s iPhone or iPad has already detected a wireless hotspot and will use it whenever possible.

♥ BY TOPIC: Contact photo when calling on iPhone full screen – how to do it?

Finally, many may be familiar with the situation when the Internet disappears while walking around the city just because the iPhone is hooked on the “familiar” Network and does not want to part with it.

To cope with this kind of difficulties, the function “Help with WiFi“. With it, the user no longer has to regularly turn off Wi-Fi in order to finally get rid of an intrusive connection with an unstable connection. When activated, the operating system is automatically switched to use cellular data. You can enable the option in the settings, in the “Cellular”. At the end of the list is the desired function “Help with WiFi“. There is also a counter of used cellular traffic, which “helped”.

ATTENTION! You should also not forget that if you are forced to save traffic, then this function can, on the contrary, harm you by downloading more content over the cellular connection than it should be (a real life example). Therefore, it is important to use the option with an eye on the tariff of your mobile operator.

See also:

[ad_2]

Forgot Wi-Fi password on Mac, how to find it on the system

13/01/2022 by

[ad_1]

You brought home a brand new iPhone or iPad and are about to activate it, but realize that you forgot your home Wi-Fi password. What to do? You can visit the web interface of the router and reset the password, or you can use the function Bunch of keys on a Mac computer.

♥ ON TOPIC: How to pass a Wi-Fi password to guests without telling it (QR code).

And so, in order to find the forgotten password from the Wi-Fi network, you need to go to the application “Bunch of keys“. Below is a list of simple steps required to find a password on macOS devices.

♥ ON TOPIC: How to find and delete large unused files and applications on Mac using standard tools.

How to find (remember) your Wi-Fi password on Mac

one… Open the utility “Bunch of keys“Which is on the way Programs → Utilities…

Bunch of keys can also be opened via Launchpad (folder Other).

2… Enter the word “airport” in the search bar – this will display all known Wi-Fi hotspots to which you have previously connected on one of your devices, united by one Apple ID account.

Select the name of the desired Wi-Fi network and double-click on it.

3… Check the box next to the item “Show password“.

4… Enter your macOS administrator password.

5… The Wi-Fi password should appear in the box next to “Show password“.

V “Keychain»Also stores passwords for applications and web-forms on sites. Therefore, their search is carried out in the same way. If this isn’t a good solution for you, try a password manager like 1Password available in the Mac App Store.

See also:

[ad_2]

How to find a forgotten Wi-Fi password on a Windows computer: 4 ways

03/12/2021 by

[ad_1]

When we connect our device to a Wi-Fi network, we usually have to enter a password for it. This is a one-time operation, then the connection will be carried out automatically. As a result, over time, the password can be simply lost or forgotten. But it may be required at least to be used with new gadgets or to provide access to guests. And resetting the network settings or rearranging the system will force you to re-enter the Wi-Fi password. But even if it is forgotten, there are simple ways to recognize it.

♥ ON TOPIC: How to format (erase) a USB flash drive (SSD, HDD) on Windows or Mac (macOS).

How to find the password for the currently connected Wi-Fi network on a Windows computer

If your computer is currently already working on the desired network, the password for which is required to be learned, then it will not be difficult to do this.

On the taskbar, find the network icon. It is usually found on the right side of the tray, next to the volume control, clock, and language switch.

Right click on this item and select “Open Network & Internet Settings“.

In chapter “State“Select the item”Configuring adapter parameters“. You can get there by entering the command ncpa…cpl in the window “Execute“(Called by pressing the combination Win + R).

Highlight the current wireless connection.

Right-click on it and select “State”…

In the middle of the window that opens, click on the button “Wireless properties“.

In the new window, go to the “Security“, Where the desired Wi-Fi password will be hidden. One has only to check the box for the option “Show entered characters”to display the password as text instead of black circles.

So it will be possible to reveal the password from the Wi-Fi network and with its help subsequently log into it with a new device. But it is best to warn the situation in advance, password managers will help with this. You can also write down the password on paper and store it later in a safe place.

♥ ON TOPIC: How to speed up your Windows 10, 8, 7 PC: 20 tips.

How to find out the password for a Wi-Fi network to which the computer was previously connected

It may well happen that your computer is currently working on a different network. But you need to find out the password from the network in which it worked earlier. This can also be done relatively easily, but in this case you will have to use the command line.

To start it, enter the query in the Windows search bar “Command line”. In the search results, right-click on the item “Command line” and select “Run as administrator”…

In the opened Command line enter the command:

netsh wlan show profiles

and press “Enter”…

The system will give information about all Wi-Fi networks to which it was connected earlier. You need to find the SSID (name) of the required network, for example, in our case “Yablyk-Public”…

Now enter a new command with your information in it. It might look like this:

netsh wlan show profile name=Yablyk-Public key=clear

Instead of “Yablyk-Public” substitute the name of your Wi-Fi network. In the given information, we need the field “Key content“. It is the password we require.

♥ ON TOPIC: How to upload photos and videos to Instagram from Mac or Windows computer.

How to find out the password for a Wi-Fi network in a router (modem)

Even if the password is not on the computer or on a piece of paper, then it is definitely stored in the router, which creates the wireless network. This information can also be obtained directly from the device. But in the absence of access to his network, you will have to connect to him directly using a network cable. To do this, the computer must have an Ethernet port or, in its absence, a USB-Ethernet adapter.

When the connection is made, launch the browser and enter the address of the router (modem) in its address bar. It usually represents or 192.168.0.1, 192.168.1.1, 192.168.100.1 etc. These are standard LAN addresses, and in most cases they are used.

And then enter the login and password from your router. These data are usually set when setting up the device, and the factory settings are often indicated on a sticker on the bottom of the router. Quite often, the following pairs are used as the default login and password:

Login: admin
Password: admin

Login: admin
Password: 1234

Login: root
Password: 1234

Most router menus have approximately the same logic. We need to find the security settings of the wireless network. In this section, the password for connecting to it will be indicated, and in clear text.

Problems in this option will appear only if the password for the router is lost. In this case, you will have to reset it to factory settings, which will automatically reset the password from the Wi-Fi network.

♥ ON TOPIC: Windows “con” folder: why can’t I create a directory with this name?

How to find out the password from Wi-Fi using the free WirelessKeyView program

If you don’t want to dig into the system settings, then a specialized program will help WirelessKeyView… It will just show all the passwords stored on the computer from wireless networks. Versions for both 32-bit systems and 64-bit systems are offered completely free of charge on the developer’s official website. ZIP archive is password protected:

WKey4567#

Application WirelessKeyView does not require installation.

There are programs with similar functionality for detecting passwords for Android. But these applications will require root privileges for full system access.

See also:

[ad_2]

Tenda Nova MW5s Mesh System Review: Seamless Wi-Fi Network Up to 300 Sq. meters

30/11/2021 by

[ad_1]

It is difficult to imagine a modern apartment that does not have the Internet and a Wi-Fi router or access point. And it’s good if the wireless network is distributed in the middle of the apartment. Most often, the network device ends up in a place from where the signal simply does not finish off to the far corners of the room. And here the user is faced with problems in the form of an unstable signal, low speed. We have to come up with intermediate solutions. And a large fleet of devices operating in a wireless network does not increase its stability.

Fortunately, there is an easy way out in this situation. There is no need to invent anything – the manufacturers took over our problems. Mesh systems help, which implement a seamless Wi-Fi network, expanding it without much user effort. Such modules themselves coordinate the transfer of data between each other. Tenda has already established itself in our market with low cost and reliable network devices. There are also Mesh systems in its range, today we will talk about the Nova MW5s model, its capabilities and customization.

Attention! Tenda Prize Draw!

At the moment, together with Tenda, we are announcing a prize drawing for our readers.

Three Tenda devices are raffled off at once:

– Tenda AC8 (wireless router);

– Tenda TX3 (wireless router);

– Tenda CP3 (IP camera).

The draw will run until December 1 (inclusive) 2021. To participate, you just need to fill out a form (in detail).

Features of Tenda Nova MW5s

The mesh system can be supplied in a set of two or three blocks. Working together, the system can form a seamless indoor Wi-Fi network. Of course, this makes sense in large areas, in a country house, 3-4 room apartment or office. Such a network will cover the entire room, while ensuring the stable operation of all devices. A pair of Tenda Nova MW5s blocks will be enough to cover an area of 200 square meters, while three blocks will be able to cover 300 square meters.

Each module has two built-in 3 dBi antennas. The manufacturer has equipped the devices with Beamforming and Maximal Ratio Combining (MRC) technologies, which help the signal to better pass through walls and other similar obstacles.

The main Mesh5 module has two Gigabit ports, one of which is WAN / LAN and the other is LAN. Mesh3f accessory modules support speeds up to 100Mbps over Ethernet ports. When working in wireless networks, speeds of 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz are achieved. The total speed is 1267 Mbps, which corresponds to the AC1200 Wi-Fi class.

Functional features of Tenda Nova MW5s

Supports Wi-Fi IEEE11 a / b / g / n / ac standards.
Easily build a seamless network of several modules. At the same time, configuration and control can be done directly from a mobile device using a proprietary application.
Supports simultaneous operation of up to 60 devices on the network.
Mesh protocols IEEE11 k / v / r are supported.
Built-in firewall.
Isolated guest Wi-Fi network.
Parental control function.
Support for MU-MIMO technology.

Specifications Tenda Nova MW5s

General characteristics

Main color: white
Placement: indoor
Installation: Desktop or Wall Mounted

Nutrition

Power type: AC 100-240 V – 50/60 Hz, 0.6A (0.3A for the auxiliary unit)
Output: DC 12V, 1A (9V, 1A for auxiliary unit)
Working temperature range: 0 ℃ ~ 40 ℃
Humidity: 5% – 90% non-condensing
PoE Support: No

Dimensions (edit)

Dimensions of one block: 91 × 91 × 93 mm

Interfaces

Ethernet ports (LAN): 2 on each unit, WAN and LAN
Ethernet port speed: 10/100/1000 Mbps (10/100 Mbps at the auxiliary unit)
Other interfaces: no

Antenna

Antenna type: internal
Detachable antenna: no
Number of antennas: 2
Antenna gain: 3 dBi

Wi-Fi

Chipset: 28nm Realtek RTL8197FNT @ 600MHz (2.4GHz), Realtek RTL8812BRH (5GHz)
Memory: 64 MB RAM, 8 MB ROM.
Wi-Fi 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac Wave2
Transmitter frequency: 2.4 GHz: 2400 MHz – 2483 MHz, 5 GHz: 5150 MHz – 5250 MHz or 5725 MHz – 5825 MHz
Simultaneous work in two bands: yes, 2.4 and 5 GHz.
Maximum wireless speed: 1167 Mbps (up to 300 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz)
Transmitter output power: 20 dBM (2.4 GHz) and 23 dBM (5 GHz)
Operating modes: guest network, repeater, access point, wireless client, Wireless Distribution System (WDS), repeater
WiMAX support: no
Connection Security: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK

Complete set Tenda Nova MW5s

Tenda does not change itself, its products are recognizable on store shelves thanks to the bright orange stripes on the black box. The front side of the box has an image of a set of modules, and on the orange stripe there is information about the area covered by the system in large letters. For two blocks this is 200 squares, and for three blocks it is 300.

The sides of the box are given over to basic technical information about the system. At the back, traditionally, again, for Tenda, a diagram of the device’s operation is shown with the connection of all modules, and also lists the main features of the product and a comparison with both less and more advanced brothers in the line.

The manufacturer clearly and honestly shows how this solution is superior to cheaper options and how it is inferior to expensive ones. The information provided helps the buyer to make a choice and gives him an understanding of what exactly he is buying.

Inside the box are the modules themselves, as well as packaged power supplies with a non-removable cable. Each item in the package has its own cell, which allows the blocks not to touch each other. A network cable can be found under one of the modules in a recess. With its help, it will be possible to connect the main unit to the Internet using the WAN / LAN port. Also included is an instruction manual that may be useful when setting up the system for the first time.

The Tenda Nova MW5s blocks themselves are made in a style similar to their brothers in the series, but at the same time they have their own face. The shape is very laconic – white plastic cubes with a matte surface, rounded vertical edges. But the glossy top surface has a barely noticeable bulge. On the front, closer to the bottom, there is a gray logo of the line – Nova. An LED is located immediately below it.

On the back of the cube, at the very bottom, there is a pair of Ethernet ports. To the left of them is a round hole for resetting the device, and to the right is the power connector. All elements are marked with embossing – it is not striking, but it helps to understand which connector is used for what. However, the only question that raises here is which port is WAN. Traditionally, it is located to the left.

Almost the entire area of the lower facet is given to a shallow notch. In it there was a place for a couple of holes for fastening to the wall, as well as a sticker with technical information. In addition to the model name, its serial number and MAC, the SSID of the wireless network and its password for initial configuration are listed.

Setting up and connecting Tenda Nova MW5s

1. Before starting the setup, it is important to pay attention to the following point. Among the modules there is one that will act as the main one. The other or others are auxiliary. And although outwardly the cubes are no different, identification will be helped by a sticker on the bottom of the case. The main module is marked as Mesh5 model, and auxiliary ones – Mesh3f. This is important if only because the main module requires a more powerful power supply, 12 V 1 A. However, on the sticker you can also see what kind of power is required for this unit.

2. First, the main unit must be connected to the electrical network using the dedicated 12-volt power supply unit.

3. Connect an Ethernet cable from your ISP to the WAN / LAN port. The indicator on the front panel will start blinking green. If it is constantly on, you will have to reset the module settings. To do this, simply hold down the button on the back, recessed into the hole marked RST for 10 seconds.

4. The next step is to install the Tenda WiFi proprietary application on your smartphone or tablet (link to Google Play, link to App Store). The application itself has been developing for a long time, the Russian language is supported, so there should be no problems with understanding the functions.

5. Now connect from your mobile device to the new network created by Tenda Nova MW5s. Its access name and password are indicated on a label on the bottom of each module. Typically the network name is a combination like NOVA_XXXX.

6. Now you need to launch the Tenda Wi-Fi application from a device connected to the new network. Click on the “Settings” button in this program.

7. In the first step, select the type of connection. If this question baffles you, then check with your provider for information. After configuring the parameter, click Next.

8. Set a name and password for the future Wi-Fi network. Click OK.

9. The device will reboot and create a new network with the parameters you specified. Connect to this network.

10. Now power up the additional modules of the Mesh system by placing them in the correct places. In the Tenda Wi-Fi app, go to the “Add Nova” menu, follow the simple steps and give permission to connect additional devices. The blocks will automatically connect to the main one. In this case, the indicator on the auxiliary dice will stop flashing green.

11. On the “My Wi-Fi network” tab in the application, you can see the units connected to each other. They should be highlighted in green.

12. The signal level between the modules can be monitored by the indicator glowing. If it is green, then the connection is stable. If the diode is yellow or red, then the modules should be placed closer to each other.

So, the network is built. Its further configuration will be carried out through the proprietary Tenda Wi-Fi application. This Mesh system does not have a web app, and its full functionality will become available after activation of all modules. The created network will be unified for 2.4 and 5 GHz frequencies. You will not be able to turn off one of the frequencies or select a specific channel to work. Avoiding these features contributes to ease of setup.

The main application window has two tabs. The first, “My Wi-Fi network”, will give you the necessary information about the current state of your network. You will see the current speed of data exchange with the Internet, the switching scheme of the modules, as well as a list of devices connected to the network with information about them (frequency, operating time, exchange rates). When you click on any of the elements, an additional window will appear. So, you can set the location of the module, configure the behavior of its LED, find out the quality of the connection and the serial number of the device.

The main network configuration is done using the “Settings” tab.

The parameters are collected in a vertical menu, each element is expanded by an additional window. The application allows you to change the Wi-Fi network settings, create a guest network, set up parental access control, set up Internet access, QoS function, add a new nova module to extend Mesh. Pay attention to the Fast Roaming menu.

Activating a single switch will help to transfer clients between Mesh units faster if the function is supported by the client device’s operating system. In the High Performance menu, you can fine tune Tenda Nova MW5s to speed up your work.

Performance testing

In tests, the system shows a very decent performance. A wireless network built on top of this solution will be more than good for most small to medium sized rooms.

Installed in the same room with the main unit, client devices show a Wi-Fi access speed of 400 Mbps. Yes, it’s not as fast as the MW6, but still fast enough for gaming and 4K streaming. In an office where the Wi-Fi signal was so bad that it had to rely on Powerline adapters, one of the Nova MW5s modules was installed, and another module was located in the corridor nearby. We managed to achieve a decent average speed of 200 Mbps, although it was not always stable.

Conclusion

Tenda has created several models of Mesh systems within the Nova MW line. All of them are distinguished by their external laconicism and ease of customization. In the face of Nova MW5s, we are dealing with a typical middle peasant, and this can even be understood from the comparative table on the box. It will help you choose the most suitable option for the user. So, if you want to constantly transfer large amounts of media from a NAS-drive, then this model will not be the best option – 100-megabit Ethernet ports may turn out to be a “bottleneck”.

But if you just need to expand your home Wi-Fi network to the most remote corners of the apartment, then Tenda Nova MW5s is a great option. It will cover the “white spots”, and the setting will be very simple. And the connection speed of the system is quite high so that you can play online, watch and broadcast videos without any problems.

This model is a reasonable and inexpensive compromise. Tenda demonstrates that for little money, you can build a seamless Mesh network in your home or office. The compactness of the solution allows you to easily move it, in search of a better location, or even to a new place. In this case, the Wi-Fi network settings will be the same. Tenda Nova MW5s is a great low-cost Mesh solution for your home with a clean design and easy setup.

Buy Tenda MW5s
Tenda Official Website

[ad_2]

Tenda E30 (AX3000) review: PCI-E adapter with Wi-Fi 6 and Bluetooth 5

18/11/2021 by

[ad_1]

Needless to say, most often wireless solutions are the “trump card” of mobile devices. Whereas desktop computers are connected to the network and to peripheral devices, usually using wires. But if you want to use a wireless mouse or keyboard, connect to a Wi-Fi network, you will have to think about expanding the functionality of the device.

♥ ON TOPIC: Tenda TX3 Review: Wireless Router with Wi-Fi 6 Support.

Fortunately, this is easier with a desktop computer than, say, a laptop. The simplest solution is a USB adapter that will work with Bluetooth or Wi-FI. But this option has its obvious drawbacks – limited speed by the port’s capabilities (especially if it is USB 2.0), compactness, which does not allow the advanced element base to be located, and the port is constantly busy. Another solution to the problem is a PCI-E adapter. Here, the speeds are different, and inside the system unit, you can already place a larger board with much more advanced chipsets.

A similar solution is offered by Tenda. Its AX3000 Wireless PCI-E Network Adapter allows you to work with both Wi-Fi 6 networks at high speeds and with Bluetooth 5.0.

Attention! Tenda Prize Draw!

At the moment, together with Tenda, we are announcing a prize drawing for our readers.

Three Tenda devices are raffled off at once:

– Tenda AC8 (wireless router);

– Tenda TX3 (wireless router);

– Tenda CP3 (IP camera).

The draw will run until December 1, 2021. To participate, you just need to fill out a form (in detail).

Tenda E30 specifications

Interface	PCI Express (x1)
Antennas	2 removable 5 dBi
Chip	Intel Wi-Fi 6 AX200 160 MHz
LED indication	1 system LED indicator
Dimensions (edit)	120.8mm × 78.5mm × 21mm
Support for Wi-Fi standards	IEEE802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax
Bluetooth support	Bluetooth 5.0 / 4.2 / 4.0
Working Frequencies	5 GHz, 2.4 GHz
Wi-Fi speed	5 GHz: up to 2402 Mbps 2.4 GHz: up to 574 Mbps
Transmitter power	<20dBm (EIRP)
Wireless mode	Station mode
Wireless Security	64/128-bit WEP, WPA-PSK / WPA2-PSK / WPA3-SAE, 802.1x, WPA / WAP2 / WPA3
System requirements	Windows 10

♥ ON TOPIC: Tenda Nova MW6 Mesh System Review: Seamless Wi-Fi Network Up to 500 Sq. meters.

Appearance and delivery set of Tenda E30

The adapter comes in a cardboard box that matches the style of Tenda products. The main color of the package is black; on the front side, the network card itself is half-turned. On the front side of the box, a wide orange stripe immediately attracts attention, on which the name of the model stands out strikingly and its main features are briefly listed.

The back side of the box is also informative – three sections with orange headings stand out here. These blocks will tell the potential buyer what kind of device it is, what its key features are and what is included in the package. At the back there is also a diagram of using the adapter and connecting various wireless devices to the computer through it.

Inside the box, you can find the board itself with a strip in a high profile format. The device is placed inside a sealed bag. There is also a bar-adapter for the low-profile format for the corresponding system units, a cable for connecting to the motherboard for Bluetooth implementation, two removable antennas, a CD with drivers and a setup guide.

Tenda E30 device capabilities

Tenda E30 is a dual-band PCI-E adapter that supports the latest Wi-Fi 6 (IEEE 802.11ax) standard, just like the previous implementations of the standard – 802.11 ac / a / n / g / b. This allows the adapter to achieve higher data rates with minimal signal latency. Supports 1024QAM modulation and 160 MHz bandwidth. Tenda E30 has two detachable 5dBi antennas, which helps to improve signal stability even at a long distance from the router.

You can flexibly adjust the position of the antennas, forming the directionality of the signal and thereby increasing the stability of the operation.

The adapter operates on 2.4 and 5 GHz frequencies, reaching a total data transfer rate of 2976 Mbps. Of these, up to 574 Mbps can be transmitted at 2.4 GHz and up to 2402 Mbps at 5 GHz. Such speeds in a wireless network allow you to comfortably watch streaming video in 4K resolution and play online without delays. USB adapters are basically incapable of such speeds.

Another important feature of the adapter is support for Bluetooth 5.0 technology. This is the most widespread and newer standard today. Thanks to it, it is possible to provide both a wider coverage compared to its predecessor, Bluetooth 4.2, and an increased data transfer rate. With Tenda E30, you can connect a Bluetooth mouse, keyboard and other gaming devices to your computer.

It is not only the support of advanced technologies that is important, but also how the device works with them. Tenda E30 shows high efficiency when working with a loaded network. The OFDMA and MU-MIMO technologies implemented in the adapter allow maintaining a high speed of data exchange with the router even in conditions of high density of wireless networks. Tenda E30 supports the latest WPA3 security standard. It supports up-to-date authentication algorithms, protecting your network from intruders and malware.

Installing and configuring Tenda E30

The format of the device itself assumes its location inside the system unit. You will need a free PCI-E port, enough for this compact x1.

1. Disconnect your system unit from the mains and remove the side cover.

2. Find a free PCI-E port (it can be closed with a dummy if it has not been used before)

3. Plug the Tenda E30 adapter into this slot. If your system unit is low-profile, then change the bar to the corresponding one that comes with the kit. Make sure that the network card is firmly seated in the connector, the pins are adjacent to each other.

4. Connect the supplied cable – 4-pin plug to the connector on Tenda E30 and 9-pin plug to the USB connector on the motherboard.

5. Now the side cover of the system unit can be closed. It remains to screw the antennas to the board connectors from the outside. Now you can turn on your computer.

The next step is to install drivers and configure network connections.

1. Insert the Tenda E30 driver disc into the drive. Double click on the file named wifi_driver_win10_64. exe and install the drivers. If you are unable to read the disc, you can download the necessary software from the manufacturer’s website.

2. Now you can connect to the Wi-Fi network. Click on the network connection icon in the lower right corner of Windows, select the desired network and enter the password to access it if necessary.

3. The drivers for Bluetooth are installed in the same way. This time you need the Bt_win10_64.exe file. You can also download it from the manufacturer’s website. Now a Bluetooth adapter will appear in your system, with which you can detect and connect to wireless devices.

Conclusion

Wi-Fi 6 technology is just starting to come to our homes. Gradually, not only routers supporting this generation of wireless networks appear, but also client devices. Wi-Fi 6 allows you to achieve faster speeds and better connection stability. In a situation where online content becomes more and more “heavy”, and dynamic games require stable and low ping, new generation adapters such as Tenda E30 (AX3000) come to the rescue of the computer. The device allows you to achieve an aggregate speed of almost 3 Gb / s, which is clearly higher than the capabilities of USB adapters and even an Ethernet cable.

Tenda E30 supports the latest WPA3 security protocol, which significantly improves authentication algorithms to protect the network from hackers and malware.

A powerful modern chip from Intel and support for the latest wireless technologies help ensure a stable and reliable connection. And the implementation of Bluetooth 5 is also a pleasant and rather useful bonus that further reveals the potential of your computer, because you will no longer need to use additional devices to connect a Bluetooth mouse, keyboard and other devices.

Buy Tenda E30

[ad_2]

Tenda TX3 Review: Wireless Router with Wi-Fi 6 Support

01/11/2021 by

[ad_1]

Tenda’s devices are distinguished by their interesting design, high quality and performance, but at the same time they offer quite extensive possibilities, and all this at an adequate price. The manufacturer produces solutions for various tasks: powerful high-speed, with the ability to use the mobile Internet, with the ability to connect an external drive. Taking into account the available budget, you can easily choose a router model for yourself. Of course, Tenda does not ignore new technologies either. There is always interest in them, but until a certain time users are discouraged by the cost of such solutions.

Mobile devices with support for the new Wi-Fi 6 standard have already appeared on the market. Of course, manufacturers of network devices did not stay away from this trend. Wi-Fi 6 makes the connection more stable and the access points can support more clients. This is really important in an environment when more and more devices appear in the house, from smartphones and tablets to TVs and a variety of sensors. Tenda unveils Tenda TX3 router, an affordable Wi-Fi 6 solution.

Main characteristics and features of Tenda TX3

Device class	AX1800
Wireless standards	802.11a / b / g / n / ac / ax (Wi-Fi 6)
Supported frequency bands	2.4 and 5 GHz simultaneously
Maximum throughput	574 Mbps (2.4 GHz) 1201 Mbps (5 GHz)
Antennas	4 × external 6dBi
External interfaces	1 × RJ45 (10/100/1000 WAN) 3 × RJ45 (10/100/1000 LAN)
CPU	Broadcom (4 cores at 1.5 GHz)
Button	1 Reset / WPS button
Wireless Security	WPA-PSK, WPA2-PSK, WPA / WPA2-PSK, WPA3-SAE / WPA2-PSK
Supported protocols	IPv4, IPv6
Wireless functions	SSID Broadcast: Enable / Disable Transmission Power: high, medium, low Beamforming MU-MIMO
Internet connection type	PPPoE, Dynamic IP, Static IP PPPoE (Russia), PPTP (Russia), L2TP (Russia), Unifi, Maxis, Maxis-special, Manual
Functions	DHCP Server, Virtual Server, Firewall, PPTP Server, DDNS
Modes of operation	Wireless Router Mode Universal Repeater Mode WISP Mode
Power Supply	12W (12V @ 1A)
Dimensions (edit)	237.6 x 153.1 x 45 mm

Wi-Fi 6 support – Tenda TX3 is fully compatible with smartphones and other devices that support the Wi-Fi 6 standard.

WPA3 security protocol – Tenda TX3 supports the next generation WPA3 security protocol, which uses a much more sophisticated encryption system and minimizes the possibility of key and password reset attacks such as KRACK and other hacks. The level of protection of confidential user data is significantly increased, which is especially critical when connecting to open (public) Wi-Fi networks.

Built-in signal amplification module – the device uses a dedicated powerful full-featured 5 GHz WLAN interface module equipped with a built-in signal amplifier. The concentrated signal provides stronger and more stable Wi-Fi coverage in a multi-storey building. You can enjoy excellent signal even in the far corners of the room.

Quad-core 1.5GHz makes Wi-Fi faster and more stable. Thanks to the high-performance processor, the network bandwidth is significantly increased and the network latency is significantly reduced.

TWT support – Technology TWT (Target Wake-up Time technology) reduces the power consumption of connected devices and significantly extends their battery life.

IPTV support – the technology allows you to broadcast television signals via an Internet channel.

Packing and delivery of Tenda TX3

Traditionally, Tenda has avoided using compact boxes for its wireless routers. As a result, the carton pack is noticeably larger than the internal device. However, this approach is understandable – the buyer immediately understands that he is being offered a serious product, protected inside and well-equipped. The packaging is made in black and orange colors, which is traditional for Tenda products. The background is dark, and bright elements are given to informative elements.

On the front side of the box, we see at a slight angle a photograph of the device itself in its working condition, with deployed antennas. Big letters on an orange background indicate the main advantages of the model – Wi-Fi 6 and AX1800.

On the side edges of the box, on a black background, the main specifications of the Tenda TX3 are briefly listed. But the back side of the box turned out to be quite informative. Here you can read a brief summary of the capabilities of the router, its other characteristics, configuration, schematic scenarios for using the router, as well as a comparison table with other Tenda models. At the very bottom, the supported functions are shown in the form of icons. The figure shows which ports of Tenda TX3 which devices can be connected to, which will clearly simplify the router configuration even for users far from network technologies. All information is translated into the language of the market in which the device is presented.

In the box, in addition to the router, you can find its 12 W (12V, 1A) white power supply, several brochures with documentation, a warranty card and a network patch cord for communicating with another network device. Actually, this is quite enough to turn on the router for the first time and configure it.

Designed by Tenda TX3

Tenda TX3 is a white router. The top cover is curved – smooth lines resemble a wave. On the top panel there is only a laconic manufacturer’s logo and a green LED.

Continuous lighting of the LED – the system has booted or the device is connected to the Internet.
Fast continuous flashing – Ethernet ports are connected or disconnected, or WPDS is active.

The side edges have numerous diagonal slots for better ventilation of the interior of the device. There is also an antenna mount – one on each side. The antennas can be directed to the desired direction. The back part attracts attention only by functional elements. Here on the sides are the remaining two antennas, and in the middle there are 4 Gigabit Ethernet ports. One of them is colored blue (WAN) and the other three are yellow. To the left of the ports there is a WPS button and a reset hole. On the right there is a power supply connector. There is no button to turn on the router itself – the device starts automatically when power is supplied to it. All buttons are embossed – but it won’t be easy to see the white letters on a white background. This device did not receive a USB port.

The lower surface also received abundant perforation. Here in the middle there is a sticker with basic information about the device, its serial number, MAC address, primary SSID, password and PIN. The legs on the sides of the face are made in the form of small protruding plastic blocks; the router did not receive any rubber pads to prevent slipping. There are a couple of holes next to the screws for wall-mounting the device. Overall, the build looks solid and reasonably stylish.

Setting up and managing Tenda TX3

To start the router, you just need to plug it in – there is no power button. But first it would be nice to look at the ports on the rear panel to understand their purpose. Color marking will help in this, as well as a barely noticeable embossing. The most important port is blue and labeled as WAN. You need to plug in the cable of your internet service provider here. Others, yellow ports, labeled 1, 2 and IPTV / 3 are used to connect with a cable your network devices (computer, TV, etc.). At the initial stage, the router can be configured just using a computer or laptop connected to it with a cable. This is where the complete patch cord comes in handy. Another option is to connect to the router wirelessly using the parameters indicated on the label. So, here is the sequence of actions:

1. Plug in the power supply unit of the Tenda TX3 router. The LED on the front panel should indicate the appearance of power and the device is booting.

2. Connect the cable of your ISP or modem to the blue colored WAN port of the router. The indicator should turn solid green.

3. If you will configure Tenda TX3 using a device connected to it, then any of the ports colored in yellow will be suitable for the patch cord. If you are going to connect to the router via Wi-Fi, then you will find the network parameters on the sticker at the bottom of the device. Typically the network name is in the format Tenda_XXXXXX. There is also a password for the initial connection on the sticker.

4. After connecting to the router, open the page with the address http://192.168.0.1 in any browser or enter the address tendawifi.com. The initial setup window for the Tenda TX router should appear.

5. This master is not so difficult to understand. First, you need to indicate how you are connected to the provider. The drop-down list contains all the options that are popular with us. If you do not know which one to choose exactly, then check with your provider for information. In the next window, the MAC address of the router is set; it can be cloned from the computer connected to it.

6. Now you will be prompted to set a name for your wireless network and come up with a password for it. It will also be used for authorization when entering the router itself.

7. Initial configuration of Tenda TX3 is completed. The device will reboot, after which a new wireless network will appear in the room, whose name and password you just set.

8. Now you can dive deeper into the router settings. You will need to connect to it with a cable or using Wi-Fi, and then drive in all the same addresses in the browser: http://192.168.0.1 or tendawifi.com. To log in, you will need the password you created earlier.

You will see the main management interface of the Tenda TX3 router. The proprietary shell is universal for most devices of this class from this manufacturer. I must say that Tenda has made the interface rather concise and understandable. There are not so many points here to confuse an unprepared user, but there are also a lot, making it possible to fine-tune the router and control it. On the orange bar on the left, you can see the names of the main sections, each of them has either information or additional parameters displayed in the main white window on the right. When you enter the utility, you will immediately be presented with the Internet Connection Status tab. On it you can see a simplified diagram of connecting your devices to the global network via Tenda TX3. Below you will see the current data transfer rates, the address received by the router via the WAN, and the firmware version.

Let’s take a quick look at the available functionality hidden in other tabs:

Internet settings. Here you can reconfigure the mode of connecting the router to the provider, changing its type, the method of obtaining the address and DNS. The status line will immediately show if there is Internet access, and in the other line – the duration of the connection.

Wi-Fi settings… This section is very important, because it is here that the basic parameters of the wireless network are set. You can change its name and password, limit the work by the schedule, change the transmitter power, select the work channel, adjust the noise immunity, change the mode. The router initially knows how to automatically switch from 2.4 to 5 GHz, so you will not find a manual range selection here.

Guest network. For access by clients who need to limit the resources of the main network, you can create a guest network. In this window, you set its name and password, as well as the time of its validity. You can limit the access speed for the guest network so that its clients do not interfere with higher-priority devices.

Parental control… This is a very important function for modern families. With it, parents can limit the time their children are online. In the window, you can set the possible time for Internet access, as well as working days, set up a black and white list, and block specific sites for the specified MAC addresses of client devices.

VPN… An important function of modern routers is a VPN server. It makes it possible to connect to the router from the Internet and gain access to internal resources. In this section, you can configure the parameters of this server and monitor its current state.

IPv6… If you decide to work with the IPv6 protocol, then just here you can find a few, but necessary settings.

Advanced settings… Obviously, this section contains additional settings, for which there was no point in creating separate tabs. Here you can configure a virtual server with port forwarding, a firewall and its rules, static routes, parameters for IPTV, activate a mobile application, MAC filtering, etc.

System settings… The last section contains settings that directly affect the operation of the router itself. Here you can configure its internal network, update the software, reboot Tenda TX3, view the event logs, set the time, etc.

How to control Tenda TX3 via mobile app

You can control the router using a mobile application. Install Tenda WiFi on your device (download for iOS, download for Android). Access to the application must first be allowed on the router itself, in the Advanced settings. After starting, the program will automatically find Tenda TX3 on the network and offer to manage it.

The interface of the mobile application is much laconic, but nevertheless functional. In total, the program has three tabs (Devices, Storage and Tools), switching between which is carried out from the bottom panel.

The first tab is more informational, here you can see who is currently connected to the router and at what speed it is working. The “Storage” tab is active only for models with a USB port, it is not in Tenda TX3. And the last tab, “Tools”, contains several useful utilities for configuring the router, as well as smart applications for quickly implementing certain tasks. Each utility is expanded and has its own settings.

Tenda TX3 in real conditions

Tenda TX3 comes with powerful hardware and a number of advanced features to ensure fast and smooth communication. The router is controlled by a 4-core processor from Broadcom, made using 28-nanometer technology and operating at a frequency of 1.5 GHz. Tenda TX3 received 256 MB of DDR3L RAM, clocked at 1866 MHz. A fairly advanced platform made it possible to implement 4 gigabit ports, which will prevent the router from becoming a “bottleneck” when exchanging data with the Internet.

The router supports the WI-Fi 6 standard, which, in conjunction with 1024-QAM technology, realizes bandwidth up to 1201 Mbps at 5 GHz and up to 574 Mbps at 2.4 GHz. In total, the theoretical 1775 Mbit / s is obtained, which exactly corresponds to the declared AX1800 class. Support for MU-MIMO and OFDMA technologies allows you to maintain high performance. In WI-Fi 5 (802.11ac), each network channel was used in turn by one device, but OFDMA divides the main channel into smaller subchannels, making it possible to work with multiple devices at the same time, reducing latency and increasing coverage. Beamforming technology also helps maintain a consistent relationship with an active customer.

In practical testing, the Tenda TX3 performed well. So, at 2.4 GHz, the average transmission rate in two directions reached 351 Mbit / s, which is comparable to the results of expensive renowned solutions. At a frequency of 5 GHz, the sum of average speeds was 953 Mbit / s, and in each direction – 900-930 Mbit / s, which is quite comparable with the results of “classmates”. Gigabit ports are operating at full capacity, with an average of 1135 Mbps bidirectional and 948 Mbps unidirectional.

An apartment of 60 square meters was used to measure the signal of the router. Measurements were made at five points:

Point 1. Near the router.
Point 2. Behind the plasterboard wall from the router
Point 3. Behind the plasterboard wall from the router and in the far corner.
Point 4. Behind a reinforced concrete wall from the router.
Точка 5. За железобетонной стеной и гипсокартонной стеной от роутера.

Для устройства с всего 4 антеннами Tenda TX3 действительно работает хорошо, важно не число, а качество. Антенны, предназначенные для работы с 5 ГГц, дают неплохие результаты, несмотря на чувствительность технологии к препятствиям и расстояния. А ведь вещание ведется с той же мощностью, как и на частоте 2,4 ГГц. Tenda TX3 работала стабильно и безотказно, перегружать устройство не потребовалось.

	Уровень сигнала 2,4 ГГц	Уровень сигнала 5 ГГц
Точка 1	-26 дБм	-23 дБм
Точка 2	-44 дБм	-41 дБм
Точка 3	-53 дБм	-57 дБм
Точка 4	-46 дБм	-48 дБм
Точка 5	-55 дБм	-58 дБм

А вот как менялась производительность в зависимости от расстояния от роутера

	2,4 ГГц	5 ГГц
Расстояние 1 м, скачивание	213 Мбит/с	833 Мбит/с
Расстояние 1 м, отправка	179 Мбит/с	703 Мбит/с
Расстояние 5 м, скачивание	123 Мбит/с	607 Мбит/с
Расстояние 5 м, отправка	89 Мбит/с	501 Мбит/с
Расстояние 10 м, скачивание	63 Мбит/с	311 Мбит/с
Расстояние 10 м, отправка	59 Мбит/с	239 Мбит/с

А вот тестирование передачи файла размером в 1 ГБ по протоколу FTP между устройствами, подключенными по беспроводной сети к Tenda TX3.

Операция	Скорость
Скачивание, 2,4 — 2,4 ГГц	213 Мбит/с
Отправка 2,4 — 2,4 ГГц	188 Мбит/с
Скачивание, 5 — 2,4 ГГц	265 Мбит/с
Отправка 5 — 2,4 ГГц	235 Мбит/с
Скачивание, 5 — 5 ГГц	842 Мбит/с
Отправка 5 — 5 ГГц	761 Мбит/с

В состоянии простоя роутер Tenda TX3 потребляет всего около 4 Вт, а под нагрузкой энергопотребление возрастает до 6 Вт.

Conclusion

Tenda TX3 является продуктом, который предлагает удобное решение для множества современных задач, связанных с использованием сети Интернет. Пользователь получает сверхбыструю передачу данных с помощью WI-Fi 6, защищенную протоколом WPA3. Высокая производительность устройства в сетях WI-Fi 6 обеспечивается поддержкой функций OFDMA, MU-MIMO и Beamforming.

Кроме того, стоит отметить поддержку технологии IPTV, благодаря которой можно транслировать телевизионные сигналы посредством интернет-канала.

В тестах производительности роутер демонстрирует отличные результаты, особенно, в диапазоне 5 ГГц. Тут скорости практически сравнимы с проводным гигабитом. Tenda TX3 дает устойчивый мощный сигнал, а утилита настройки понятна и довольно функциональна. Мобильное же приложение позволит управлять устройством, даже находясь вне дома.

Купить роутер Tenda TX3

[ad_2]

Wi-Fi speed: how to check on your computer, iPhone or iPad and how to avoid mistakes

09/08/2021 by ALOK DAS

[ad_1]

Almost every Internet user faces Wi-Fi network problems from time to time. Perhaps the connection speed drops for no apparent reason, or it seems that it does not match the tariff you are paying. There are quite a few online services for testing Wi-Fi connection speed. They work in any browser and allow you to get an accurate picture of the speed of your Internet connection.

♥ BY THEME: How to turn off cellular data for certain apps on iPhone and iPad.

How Wi-Fi Speed Tests Work

Most tests measure three things:

Ping speed (parameter of the quality of the Internet connection);
Download speed (download from the Internet);
Download speed (upload a file from the device to the Internet).

Let’s take a look at each of the above elements.

Ping speed

The ping rate provides information about the network latency. Ping – check the speed of sending and returning data packets to the server. The number of sent and received packets is also checked. High latency leads to latency, which many users of online games would certainly like to avoid. Ping more than 150ms is considered too high and can lead to latency, while ping less than 20ms is considered very low latency.

Download speed

Download speed is the most important metric for how quickly data is downloaded to your computer, smartphone, or tablet. Download speed is measured in megabits per second. During testing, various pieces of data are loaded onto the device. As they are loaded, the size and number of connections are adjusted. Thus, the maximum connection speed is achieved. In order to compare the results, you need to know the speed of the service you are using. For example, a bandwidth of 25 Mbps is usually recommended for receiving 4K video, or 5 Mbps for HD video.

Here, it is important to understand that the speed of 1 Mbit / s does not mean that files will be downloaded at a speed of 1 MB (megabyte) / s.

1 megabyte = 8 megabits

In other words, to find out the maximum download speed in megabytes, divide the value in megabits by 8.

For example, at a speed of 25 Mbps, the maximum download speed will be 3.13 Mbps.

Download speed

Upload speed determines how quickly data is uploaded, such as when you copy files to a cloud service. As a rule, the download speed is lower than the download speed, and Internet providers are not so active in focusing on this parameter. The download speed test works similarly to the one described above, but in reverse order – your browser downloads the data with some modifications to ensure the maximum connection speed.

The three tests described above will allow you to get a complete picture of the Wi-Fi connection speed: whether the speed is as promised by the provider, whether it will be sufficient for your purposes and how strong the signal of the router used is.

♥ BY THEME: How to enable tethering and share Internet (Wi-Fi) from iPhone or iPad.

Common test mistakes

Do not test just once

If you want to get a clear idea of your actual internet speed, do not stop at just one test run, as speeds can vary. You can run the same test twice under the same conditions and get different results. Do at least three tests on different days and then you can display an average that will show the actual speed of the Internet connection.

Do not test during peak hours

One of the most important factors affecting connection speed is the number of users simultaneously connected to the network. During peak hours, for example, Sunday evening, when the load on the network increases, the Internet speed is likely to be slow and this will be reflected in the test. If you want to evaluate performance during “peak” and “off-peak” periods, test the speed at that time and compare the results. To assess overall speed, testing is best done during off-peak hours.

♥ BY THEME: How to pass a Wi-Fi password to guests without naming it (QR code).

Don’t test in the wrong place

The speed test results may be affected by the location where you are testing. The choice of location depends on your purpose.

If you just need to measure the speed of Wi-Fi: test so that you can see the router. In other words, check the speed in the room where the router is located so that physical objects do not block the signal.

If you are trying to find the best location for your router: run tests in each room and then compare the results. This way you can identify the room where the signal is weakest.

If you want to identify blind spots or areas with the weakest Wi-Fi coverage: test at that location and compare the result with a test conducted under ideal conditions. If the problem is confirmed, take steps to expand your Wi-Fi coverage.

During testing, do not download files to other devices

The test measures the Internet speed only on the device on which it is carried out, so try to maximize the bandwidth available for this device. Many users have many services connected to their wireless network, which slows down their internet speed. When running a test, disable them, or at least make sure that no files are being loaded or unloaded.

♥ BY THEME: Slow (slows down) Internet (3g / 4g / Wi-Fi) on an iPhone: the main reasons.

Remember to restart your computer

Testing can be done on any device with a browser, from a computer to an Amazon Fire TV Stick, but in any case, be sure to restart your device first.

For a long time, devices that have not rebooted are running residual background processes that can slow down their work and, in particular, affect the Ping rate. Restart your device and do not open any other applications until you have tested it. Watch for applications that start at system startup (for example, a cloud application will connect to the Internet to synchronize data). You can also temporarily disable your antivirus.

Use the right testing tools

There are a large number of online services available on the web to check the speed of the Internet, but which one is better? If your ISP offers a service, start there.

Try to give preference to services using HTML5 over Adobe Flash technology. While any modern browser supports HTML5, Flash is a separate system that can affect speed. Alternatively, you can use the Speedtest.net application, available in both Windows and Mac versions.

Do not test internet speed with VPN enabled

Make sure you don’t have VPNs, proxies, backup apps, or other utilities connected. They often slow down the connection speed, so the test results will be inaccurate.

Why Test Wi-Fi Speed?

Testing Wi-Fi speed is useful for many reasons, and the results will help in the following cases:

You can make sure you are getting exactly the speed you pay for;
Look for a new internet provider;
Set up a new router and check coverage in your home;
Check if the internet speed meets your needs;
Check that the connection speed is sufficient for the normal functioning of Apple TVs or game consoles;
You will be able to determine which hours are “peak” and which are not.

See also:

[ad_2]

Tenda 4G03 or how to create a Wi-Fi hotspot from 3G / 4G (LTE) Internet

28/07/2021 by ALOK DAS

[ad_1]

In addition to classic routers, which Tenda has its own line, there is also a special class of devices on the market. Their distinguishing feature is the ability to use the mobile Internet as a source. Given the potential 4G LTE speeds, this might not be any worse option than traditional cable providers offer.

♥ BY THEME: Tenda Nova MW6 Mesh System Review: Seamless Wi-Fi Network Up to 500 Sq. meters.

I must say that there are few such routers on the market. But Tenda decided to release its own version of the router with support for 4G LTE, which in parallel also supports an Ethernet connection. In fact, the manufacturer has created a whole line of such devices, inexpensive, stylish and functional.

In our review, we will focus on Tenda 4G03. This router has a built-in 3G / 4G module, which requires a SIM card from a mobile operator. The device can connect to a cellular network, and then distribute the Internet to clients both via Wi-Fi and via cable.

But Tenda 4G03 can work as a classic router – there is a regular WAN port for this. True, the Wi-Fi network operates at 2.4 GHz and provides speeds up to 300 Mbps. Usually this is enough, otherwise the older models of the line give more opportunities. But the proprietary function of intelligent coverage Beamforming using a directional beam Tenda 4G03 received – this will make the Wi-Fi connection more stable.

In any case, Tenda 4G03 will easily prove its worth. There are places where there are no Internet providers, or they do not provide sufficient quality service, but there is 4G coverage. Then you just need to buy a SIM-card of the operator, pay for the selected tariff and insert the card into the router. Now it will distribute the Internet over Wi-Fi to your devices. An excellent option for a summer residence, a trip, a country house, offsite business outlets and other similar cases.

Main features of Tenda 4G03

4G category	LTE CAT4
3G / 4G standards	FDD LTE, TDD-LTE, WCDMA
Mobile frequencies	4G FDD LTE: B1 / B3 / B7 / B8 / B20 4G TDD-LTE: B38 / B40 3G WCDMA: B1 / B3
Maximum 4G speed	download 150 Mbps download 50 Mbps
Wireless standards	802.11a / b / g / n
Supported frequency bands	2.4 GHz
Maximum throughput	300 Mbps
Wi-Fi transmitter power	up to 20 dBm
External interfaces	1 × RJ45 (10/100 Mbps LAN / WAN) 1 × RJ45 (10/100 Mbps LAN) 1 × 2FF SIM card slot
Antennas	2 internal for Wi-Fi 2 internal for 3G / 4G
Processor / coprocessor	800 GHz (28 nm)
Button	1 Reset / WPS button 1 power button
Indication	Power, Wi-Fi, LAN, Internet, 3 strips for 3G / 4G signal strength
Wireless Security	WEP, WPA-PSK, WPA2-PSK, WPA / WPA2
WAN type	Wired or 3G / 4G
3G / 4G capabilities	Auto-APN Auto dial-up Roaming SMS (Send / Receive / Delete) USSD Data limted PIN Management Failover
Wireless functions	SSID Broadcast: Enable / Disable Guest network Work schedule
Power Supply	9W (9V @ 1A)
Dimensions, weight	185 x 126 x 60 mm, 280 g

In the meantime, there is no need to worry about it. ”

Packing and delivery of Tenda 4G03

The box with the Tenda 4G03 router is made in the colors traditional for the manufacturer – it is black with orange inserts. The foreground shows the device itself in an upright position. Its main features are written on the side in the orange stripe. So already on the front side of the box it becomes clear what kind of device it is and how it looks. The side edges of the box reveal its specification.

The back side of the package is also made in black and orange tones and reveals in more detail the functionality of the device, including due to the scheme of its inclusion. To highlight the main advantages of Tenda 4G03, a comparative diagram was used, it can be seen that this is the youngest device in the line. And the pictures above show the main scenarios for using the router.

Inside the box, in addition to the device itself, you will find a minimal but sufficient set: a power supply, a network patch cord, a small brochure and a warranty card.

Tenda 4G03 design

Tenda traditionally pays a lot of attention to the appearance of its devices. But if ordinary routers have black color and curved edges in the form of wings, then Tenda 4G03 received a completely different look. The device has an oval-shaped platform on which the router is placed vertically. The section gradually decreases upward, so that the side faces also turned out to be not just rounded, but also curved. The main body material is white matte plastic, it looks sturdy and certainly not flimsy or cheap. The glossy insert on the upper platform adds variety.

The manufacturer’s logo is applied at the bottom of the front panel. In the upper part, there are light indicators. They are green, indicating the power of the router, the status of its connection to the Internet, the status of the Wi-Fi network, the connection of devices via Ethernet, as well as the indication of the signal strength of the 3G / 4G network.

But the ports and power buttons are located on the back of the device, at the very bottom. There you can see the power button, the connector for the power adapter, the RST / WPS button for resetting the settings, and a pair of ports: WAN / LAN and LAN.

Both ports are gray in color, so you can find out their purpose using the embossing on the case. Above, in the middle of the case, there is a plug that covers the compartment for connecting removable antennas.

At the bottom of the device there is a large sticker indicating the information necessary for operation (primary network name, password to it, IMEI, MAC, serial number). Here you can also find a mini-SIM card slot, which is very important for this device.

To use the modern nano-SIM standard, you will have to use an adapter.

The router stands on plastic legs, however, they do not provide a strong grip.

Configuring and managing Tenda 4G03

After connecting the router to the socket, insert the SIM card of your mobile operator with an activated mobile Internet tariff into the slot. Now press the power button of the device. After a few seconds, it will load and start distributing the Internet immediately. If your provider offers a wired Internet connection, then the cable must be connected to the WAN port of the router, having previously identified it using embossing on the case. The remaining port can be used to connect network devices.

So, the initial setup is done. You can see the Wi-Fi network with the name displayed on the sticker at the bottom of the case. When you connect to it, you will most likely be able to access the Internet if the operator’s SIM card is installed. But it is still better to carry out the initial configuration, whose principle is similar for most of Tenda’s routers. To do this, you need to connect to the device via Wi-Fi or using a network cable (such as is included in the package). And here are the steps required for this:

1. Connect the Tenda 4G03 router to the network, turn it on by pressing the power button on the back. The LED should light up green.

2. The router must have access to the Internet, for this a SIM card or an Internet provider cable must already be inserted into it. The success of the action will be signaled by the second indicator.

3. If your client device cannot connect to the router’s Wi-Fi network, then use an Ethernet cable by connecting it to the router’s port.

4. If you connect to the router via Wi-Fi, then the parameters of the primary network can be found on the sticker on the bottom of the case.

Usually the network name looks like Tenda_XXXXX. The username and password for accessing it are indicated next to it.

5. Navigate your browser to tendawifi.com or http://192.168.0.1. You will see the router’s quick setup wizard window.

6. Here you can configure the wireless connection of the router via a SIM card: set the profile name, its APN, parameters and authentication type.

7. The next window is for configuring Wi-Fi – set a name for the wireless network and a password to access it.

8. After rebooting the router, a network will be created with the name that you specified during setup.

9. And for a more detailed setup of Tenda 4G03, reconnect to the router’s network and go to tendawifi.com or http://192.168.0.1. For authorization, you will need the password you created.

Tenda 4G03 web management interface consists of several tabs, each of which has a number of corresponding parameters. Sections are moved to the left on the orange column.

Internet state… This is the default tab. Here you can see the scheme for turning on the router, the current data transfer rate, external IP address and the number of clients connected to the device. In a word, very general information.

Internet settings… This tab will show you the status of your Internet connection, as well as enable or disable mobile data (then you have to use cable access) and mobile data settings.

Wi-Fi settings… Here you can fine tune your wireless network. In addition to the usual change of its name and password, it is proposed to set a work schedule, select a channel and transmitter power.

SMS. This section is available only in the line of routers with support for mobile networks. Here you can configure the sending of SMS messages.

Guest network. The router makes it possible to create, in addition to the main network, a guest network, whose clients will be isolated from the resources of the main network. Tenda 4G03 allows you to set the period of operation of this network and limit access to it.

Parental control. This section will help parents and even inexperienced users to monitor the network operating time of devices. If necessary, you can limit the Internet surfing for certain clients.

VPN. For Tenda routers, the VPN server function is already the norm. You can connect to the device from the Internet by accessing the local network. On this tab, you can configure the server settings and see who is currently connected to it.

Advanced settings. In this section, numerous options are presented that will allow you to fine-tune your router: these are MAC address filtering, static routes, dynamic DNS and much more.

System settings. But more fundamental settings are collected in this section. It allows you to configure WAN and LAN, update the firmware, set the system time, view the logs and reboot the router.

How to work with Tenda 4G03 via mobile app

After connecting to the router via Wi-Fi network or Ethernet cable, launch the Tenda WiFi app (download for iOS, download for Android). The application will automatically identify the router and provide access to its management.

The utility interface is laconic, but quite functional. There are two tabs: Devices and Tools. The first one is relatively stingy with information – it’s just a list of devices currently connected to the router, indicating the current data transfer rates. The second tab contains more than 10 buttons, each of which is tied to a particular function (Blacklist, Wi-Fi Schedule, Guest network, Wi-Fi network name and password, etc.). When you click on the selected element, a window with its parameters will open. Thus, you can quite subtly, even from a smartphone, adjust the router to fit your needs or get information about its operation.

Tenda 4G03 router testing

If we evaluate the possible speeds, then Tenda 4G03 does not promise records, but the “highlight” of the router is different. It provides basic access to the network, according to the 802.11n standard, it is up to 300 Mbps. This is enough to provide the capabilities of 4G LTE. The maximum speed of this mobile Internet standard is 150 Mbps for download and 50 Mbps for download. For high speeds, it is necessary to use the 5G standard, but devices of a completely different class are capable of working with it.

During the tests, we first measured the speed on a phone connected to 4G. The measurements showed 19/16 Mbps. When connected to the Internet via a Tenda 4G03 router, the speed was slightly lower, 15/16 Mbit / s, which is not critical. If we talk about the coverage area of the Wi-Fi network, then the device shows itself quite well. At a distance of 12-15 meters from it, even through two wooden walls, the signal was almost maximum. An older model with two external antennas will provide improved coverage. Taking into account what we saw and the price of Tenda 4G03, we can safely assume that the router is fully justified.

Conclusion

Tenda 4G03 belongs to a rather rare class of devices. The user also gets the opportunity to use the mobile Internet as a source for his local wireless network. Tenda 4G03 may be the youngest representative of the line, but at the same time, you can get speeds up to 150 Mbps at the entrance, and clients can connect at speeds up to 300 Mbps. Here the 4G technology itself becomes the “bottleneck”. The router has shown itself to be quite productive, this solution is perfect for places remote from traditional providers. The hardware performance is enough to handle 32 devices. It is worth noting the simplicity of setting up the router, the presence of a mobile application. We can safely recommend this device if your network in a small space requires a safety net in the form of an additional mobile Internet provider.

Buy router Tenda 4G03

[ad_2]

Why am I connected to Wi-Fi but no internet?

12/07/2021 by ALOK DAS

[ad_1]

Sooner or later, this happens to everyone – the signal of your Wi-Fi network is strong, but there is no Internet connection. The point is that Wi-Fi and the Internet are two different things. Understanding their differences will help you troubleshoot future network connectivity issues.

♥ BY THEME: How to pass a Wi-Fi password to guests without naming it (QR code).

How is Wi-Fi different from the Internet?

Wi-Fi Is a registered trade name for a group of technologies that enable a device, such as a computer, smartphone, or game console, to connect to a local area network (LAN) wirelessly by radio. Wi-Fi eliminates the need for a physical cable between a network device and a router – the device that manages connections between all devices on a local network.

the Internet Is the general name for hundreds of millions of smaller networks, the same local area networks, linked together. In these small networks, billions of devices communicate with each other via TCP / IP protocols. These computers can be connected to each other using physical wires, optical cables, radio communications, or other technologies that are yet to appear in the future.

So, when your device has a Wi-Fi connection, then you are connected to some kind of local network. But the local network you are connected to may not necessarily be connected to the Internet. That’s the problem. Let’s take a closer look at it.

♥ BY THEME: We translate megabits into megabytes, or how to correctly understand the speed of the Internet.

Understanding the connection problem

Here is a very simplified network diagram. It shows that your device is connected to the router via Wi-Fi, forming a local network. And your local network successfully connects to the Internet in a separate way.

Sometimes the connection between your local network (controlled by a router, hub or modem) and the Internet gets interrupted. There may be a temporary problem with your ISP’s equipment, physical damage to the cables connecting you to the ISP’s network, or some other issue. In this case, you are still connected to the local network, but it has already lost its Internet connection.

In the second diagram, you can see that your device can show a stable Wi-Fi connection, a strong signal, but at the same time not have access to the Internet.

♥ BY THEME: Wi-Fi speed: how to check on your computer, iPhone or iPad and how to avoid mistakes.

What if you don’t have an internet connection?

If you have problems connecting to the Internet, try restarting your device first. If that doesn’t work, the next steps depend on where you are.

If you are at home, you can try troubleshooting the router itself (for example, restarting it). If you are technically skilled enough, there are other steps you can take with your computer to troubleshoot Internet connectivity issues. This can be, for example, reconfiguring a router. If there is no result, you will have to contact your ISP and report the problem. It is likely that the problem did not occur in your apartment or even in your house. Having learned about the accident, you will be able to clarify the timing of its elimination.

If you are having problems connecting to the Internet at work, contact your IT department and describe the symptoms of the problem. If you are in a public place, such as a store, doctor’s office, or restaurant, you can politely tell one of the employees that you cannot access the Internet through that network. It is likely that it does not provide this opportunity. But remember that the problem may be specific to your device, so it may not always be possible for someone else to quickly solve it for you.

See also:

[ad_2]

EZVIZ TY2 Review: Rotatable Wi-Fi Camera

20/05/2021 by ALOK DAS

[ad_1]

At one time, webcams were a breakthrough technology. Today, not a single smart home can do without them. These devices provide reliable protection day and night. But life makes cameras evolve. These are no longer just “eyes” with low resolution and fixed focus. EZVIZ has created a simple, inexpensive, but at the same time advanced smart device – a TY2 PTZ camera with the ability to work in Wi-Fi networks. It has a 360-degree field of view and advanced tracking features cover the entire room.

EZVIZ TY2 camera set

The camera comes in a white thin cardboard box with a picture of the device on its front and a resolution of 1080p. The back side lists the main functions of the camera. Inside is an already completely white cardboard box, in which all the details lie.

In addition to the camera itself, the kit includes a base for mounting to a horizontal surface, including the ceiling. Holes can be drilled using a special template, and a screw fixing kit is also available. The camera comes with a microUSB power cable and separate adapter, as well as a couple of quick start and regulatory brochures. The attached QR code allows you to quickly connect to the device.

EZVIZ TY2 camera appearance

The camera got a somewhat futuristic look and looks like a robot from a cartoon. The device consists of two balls placed on top of each other and fused together. Moreover, the lower one will be flattened at the bases. There is a recessed oval cut in the middle of the upper part. In it, behind the plastic, the lens itself is hidden. On its left side there is an LED indicator, and on the right – a microphone.

Under the peephole, there was a place for a slot for a microSD card and a reset button, in order to access them, you need to raise the lens as high as possible.

On the back side, most often hidden from outside sight, all the elements are located on the lower half of the device. Above you can see the speaker grid, and just below there are a couple of ports: Ethernet and a power jack.

On the lower half, under the camera eye, there is a light gray manufacturer’s logo. It looks stylish and quite appropriate there.

Camera dimensions:

Width: 88mm
Height: 118.7 mm

EZVIZ TY2 Camera Features

The main feature of this camera, which makes you pay attention to it, is the absence of blind spots. The bottom half can be rotated horizontally up to 340 degrees, and the camera peephole in the recess rotates 55 degrees vertically. This feature of the device allows you to cover the entire room with a gaze – the camera is not tied to a fixed observation of one point.

Another important camera function is smart tracking. As soon as the camera captures a moving object, it starts tracking its movement with parallel broadcasting of video in real time to the remote phone.

At night, the camera does not stop and the functionality is not lost – powerful IR LEDs allow you to photograph objects at a distance of up to 10 meters from the device even in poor lighting conditions.

A speaker for a webcam is a rarity, but in this case its presence is understandable and justified. TY2 makes it possible to implement two-way voice communication, which allows you to both communicate with loved ones and banally scare away intruders who invaded the house. Voice transmission to the camera speaker is carried out through the proprietary EZVIZ application.

The manufacturer pays special attention to data security issues. As part of their protection, end-to-end encryption of the video stream transmitted from the camera to the cloud is performed (the volume is provided free of charge for a time), and only the user himself has the decryption keys. It has the ability to switch the camera to sleep mode using a proprietary application. Connecting to the network is possible both through the Ethernet port and via Wi-Fi, which allows the camera not to be tied to cable networks.

You are offered to choose one of several options for storing data. The user himself can decide where the captured video will be stored. This can be a microSD card (supports media up to 256GB), encrypted cloud storage, or an NVR. At the same time, the camera is able to save the video stream simultaneously to all three different sources, which implements the backup function in case of damage to the device.

And the camera control center is the proprietary EZVIZ application, which makes it possible to take videos or pictures, publish them. Directly from a mobile device, you can select the picture display mode, view the video archive, control the camera, including activating the eightfold zoom.

Setting up the EZVIZ TY2 camera

When turning on the camera for the first time, pay attention to the LED indication. If it is solid red, then the camera is starting up. If the red light is blinking, there is a problem with the Wi-Fi connection. Fast blinking – problems with the device itself, it is worth checking the memory card first. When the LED is solid blue, it indicates that you are watching a video or playing it in the EZVIZ App. A fast blinking blue indicates that it is ready to use a Wi-Fi network. A slow flashing blue light indicates that the camera is operating normally.

So, after connecting the camera to a power source, you will need to connect to it. To do this, your mobile device must be on a 2.4 GHz Wi-Fi network. This is an important point – more and more often there are dual-band routers that automatically switch the network mode for devices. As a result, it may turn out that the phone with the camera will end up on different networks and will not see each other during the initial setup. In the future, the mobile device can work in any networks anywhere in the world – access to the camera will be provided.

After installing the EZVIZ app from the App Store or Google Play, you will need to launch it and go through a simple user registration. Now you need to add your camera in the application. On the home screen, tap the “+” icon in the upper right corner to launch the QR code scan window. You can find it on a paper sticker included with the camera or on the bottom of the device itself. Then the application will complete the configuration with a few steps with questions.

In the main window of the application, you can see a large icon with the name of your camera. Just click on it and you will be taken to the device management window. There are not many functions here: Video Archive, Snapshot, Record, Shift / Tilt (control the camera motors to move the focus), Talk (voice transmission) and Resolution.

Please note that after inserting a memory card into the camera, you need to initialize the media. This can be done in the EZVIZ app by going to the device setup window and selecting Storage Status. If the memory card is displayed uninitialized, then you must click on the corresponding icon. After the state of the media switches to “Normal”, you can use it to store data.

EZVIZ TY2 Camera Specifications

Video compression: H.264
Video bitrate: Adaptive
Max. resolution: 1920 × 1080
Frame frequency: Max. 15 fps, adaptive during network transmission
Smart alarm: Motion Detection
Wi-Fi network connection: Configuration via access point
Protocol: Proprietary cloud protocol EZVIZ Cloud
Interface protocol: Proprietary cloud protocol EZVIZ Cloud
Storage: MicroSD card slot (max. 256GB)
Food: Micro-USB
Wired network: RJ45 × 1 (10M / 100M adaptive Ethernet port)
Standard Wi-Fi: IEEE802.11b / g / n
Frequency range Wi-Fi: 2.4-2.4835 GHz
Channel capacity: 20 MHz
Safety: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission speed: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

Operating conditions
Temperature: -10 ° C to 45 ° C
Humidity: 95% or less (non-condensing)

General characteristics:
Power supply: 5 V, 1 A DC
Power consumption: Max. 5 watts
IR illumination range: Max. 10 m
Camera dimensions: 88 x 88 x 124 mm
Packing dimensions: 103 × 103 × 186 mm
Net weight: 255 g

Price and where to buy the EZVIZ TY2 camera?

The cost of the EZVIZ TY2 camera is about 4,000 rubles.

The camera is sold in all major retail chains, online stores, as well as through official distributors of EZVIZ, including: AliExpress, Svyaznoy, Citylink, Ozon.ru, M.Video, Detsky Mir, Eldorado and many others. A complete list of stores can be found on this page.

Conclusion

The TY2 webcam from EZVIZ is a new generation device. Intelligent functions and a 360-degree view significantly expand the possibilities of video surveillance, two-way audio communication proves to be a very successful solution. The laconic and stylish device will fit into any interior and will become an integral part of your smart home.

[ad_2]

What iOS Wi-Fi Assist does on an iPhone or iPad

10/02/2021 by ALOK DAS

[ad_1]

It happens that when you run into a cafe for lunch, you find that the Wi-Fi connection speed is not sufficient for comfortable working with the device on the Web. However, the user’s iPhone or iPad has already fixed the wireless hotspot and will use it whenever possible.

♥ BY TOPIC: Contact photo when calling in full iPhone screen – how to?

Finally, many may be familiar with the situation when, while walking around the city, the Internet disappears just because the iPhone is hooked on the “familiar” Network and does not want to part with it.

To cope with this kind of difficulties, the function “Wi-Fi help“. With it, the user will no longer have to regularly turn off Wi-Fi in order to finally get rid of the intrusive connection with an unstable connection. When the function is activated, the operating system is automatically switched to use cellular data. You can enable the option in the settings, in the section “Cellular”… At the end of the list is the required function “Wi-Fi help“. There is also a counter of the used cellular traffic, which “helped”.

ATTENTION! Also, do not forget that if you are forced to save traffic, then this function can, on the contrary, harm you by pumping out the amount of content over the cellular connection that is higher than it should be (a real life example). Therefore, it is important to use the option taking into account the tariff of your mobile operator.

See also:

[ad_2]

How to find a forgotten Wi-Fi password on Mac (macOS)

14/01/2021 by ALOK DAS

[ad_1]

You brought home a brand new iPhone or iPad and are about to activate it, but realize that you forgot your home Wi-Fi password. What to do? You can visit the router’s web interface and reset the password, or you can use the function Bunch of keys on a Mac computer.

♥ BY TOPIC: How to pass a Wi-Fi password to guests without telling it (QR code).

♥ BY TOPIC: How to find and delete large unused files and applications on Mac using standard tools.

How to find (remember) Wi-Fi password on Mac

one… Open the utility “Bunch of keys“Which is on the way Programs → Utilities…

Bunch of keys can also be opened via Launchpad (folder Others).

2… Enter the word “airport” in the search bar – this will display all known Wi-Fi hotspots to which you have previously connected on one of your devices, united by one Apple ID account.

Select the name of the desired Wi-Fi network and double-click on it.

3… Check the box next to “Show password“.

4… Enter your macOS administrator password.

5… The Wi-Fi password should appear in the box next to “Show password“.

IN “Keychain»Also stores passwords for applications and web-forms on sites. Therefore, their search occurs in the same way. If you’re not comfortable with this solution, try a password manager like 1Password available in the Mac App Store.

See also:

[ad_2]

Tenda Nova MW6 Mesh System Review: Seamless Wi-Fi Network Up to 500 Sq. meters

29/12/2020 by ALOK DAS

[ad_1]

We are so attached to the Internet that we need access to the World Wide Web at every point of the house. And if our laptops or smartphones are not located somewhere, then various elements of a smart home can work there – TVs, light bulbs, vacuum cleaners. It has long become clear that a single router installed in a central (and this is still the best option) place at home or office is often not enough to meet all needs. Expanding a Wi-Fi network is not an easy question, there are several options for its implementation. Not everyone can and want to tinker with a bundle of routers, but Mesh systems successfully cope with the problem.

Buy mesh-system Tenda Nova MW6 (2 blocks)
Buy mesh-system Tenda Nova MW6 (3 blocks)

♥ BY TOPIC: Review of the Tenda Nova MW3 mesh system, or how to make seamless Wi-Fi anywhere.

What is a Mesh System?

Mesh architecture consists of several devices that form a single Wi-Fi network. Access to it is the same in any place of access, since all nodes are equal. This makes it possible to get rid of the “dead” zones. Not only is the Mesh solution itself already built for painless network expansion, some vendors offer a self-organizing system literally out of the box. As soon as they are turned on, the modules connect to each other and automatically form a network. The Mesh architecture has a lot of advantages, gradually more and more solutions from various manufacturers appear on the market. Tenda offers stylish, inexpensive and functional routers that can meet most of the user’s needs.

♥ BY TOPIC: Review of Tenda AC8 router.

Tenda Nova MW6 features

Tenda has implemented Wave 2.0 MU-MIMO technology in Nova MW6, which makes it better to work with multiple simultaneous connections, sometimes outperforming traditional routers. And Beamforming + technology enhances the Wi-Fi signal by actually targeting the receiving client. Even when one unit is disconnected, the system reconfigures itself to keep customers online.

Tenda Nova MW6 forms seamless roaming between multiple devices sharing the Internet – user sees one network with one password and can freely move around the room and not be afraid of disconnections.

With traditional network solutions, when the signal of one of the transmitters is lost, you need to find another and reconnect to the network.

With Nova, everything is much simpler: if even one of the MW6 units is completely disabled, the remaining units automatically reconfigure the network on their own so that you remain online all the time.

Tenda Nova MW6 works “out of the box” – you just need to connect the units to the 220 V network. It is proposed to control the system using a mobile application. It is worth noting the presence of support for the voice assistant Alexa. This allows you to build a smart home based on the Nova MW6.

Tenda Nova MW6 can be sold with a different number of modules: 1, 2 and 3. This makes it possible to limit yourself to 1 or 2 blocks in case of a small area, or to expand the Mesh system. The proprietary Tenda Wi-Fi application (Android, iOS) will help in connecting additional modules. But the blocks require the same firmware version. The firmware of each of the blocks is updated through the item Firmware update in the Settings of the Tenda Wi-Fi app.

In the meantime, there is no need to know about it. ”

Specifications

General characteristics

Main color: white
Placement: indoor
Installation: Desktop or Wall Mounted

Food

Power type: AC 100-240 V-50/60 Hz, 0.6 A
Output: DC 2V, 1.5A
Working temperature range: 0 ℃ ~ 40 ℃
Humidity: 5% – 90% non-condensing
PoE Support: No

Dimensions, weight

Dimensions of one block: 100 × 100 × 100 mm
Single block weight: 410 g
Package dimensions: 357 × 175 × 115mm (3 units)
Package weight: 2.05kg (3 units)

Interfaces

Ethernet (LAN) ports: 2 on each unit, WAN and LAN
Ethernet port speed: 10/100/1000 Mbps
Other interfaces: no

Antenna

Antenna type: internal
Detachable antenna: no
Number of antennas: 2
Antenna gain: 3 dB

Wi-Fi

Chipset: 28nm Realtek RTL8197FS @ 1 GHz (2.4 GHz), Realtek RTL8812BRH (5 GHz)
Memory: 128 MB RAM, 16 MB ROM.
Wi-Fi 802.11b, 802.11n, 802.11g, 802.11a, 802.11ac Wave2
Transmitter frequency: 2.4 GHz: 2400 MHz – 2483 MHz, 5 GHz: 5150 MHz – 5250 MHz or 5725 MHz – 5825 MHz
Simultaneous operation in two bands: yes, 2.4 and 5 GHz.
Maximum wireless speed: 1167 Mbps (up to 300 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz)
Transmitter output power: 20 dBM
Operating modes: guest network, repeater, access point, wireless client, Wireless Distribution System (WDS), repeater
WiMAX support: no
Connection Security: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK

Tenda Nova MW6 complete set

A set of modules is delivered in a stylish box made of high-quality thick cardboard. The front side shows the blocks of the Mesh system themselves. The orange mark clearly indicates the area covered by them in 300 m² (2 blocks) or 500 m² of squares.

The sides of the box are provided with information about the technical characteristics of the device, and the back shows the essence of the Mesh system and its capabilities. The product is certified on the Russian market, so all information is presented in Russian. Thus, even a user unfamiliar with this technology, simply by studying the information on the box, will already be able to understand the capabilities of the product.

Inside the box there is a “black box” – one more box in which the system modules with packed power supplies lying next to each other are placed.

Each element has its own cell, which allows the “cubes” not to dangle inside. In the recess under one of the blocks, you can find one network cable to connect one of the Tenda Nova MW6 blocks (any of the kit) to the Internet using the WAN and LAN ports.

Together with the blocks, instructions in Russian are supplied, which, if necessary, will help in setting up the system.

Designed by Tenda Nova MW6

Usually a Wi-Fi router appears to us as a flat rectangular device with protruding antennas. But Tenda prefers to amaze users with its products, giving them a truly futuristic look. In general, both Nova NW3 and Nova NW6 received similar features. The elements of the Mesh system are white plastic cubes.

But if in the first case they got rounded edges and look more playful, then the NW6 blocks have clear right angles. Each face of the cubes is divided by straight lines into four equal parts. Functionally, this makes no sense, but as a design solution it looks very stylish. Blocks got their own face, it is clearly better than faceless white cubes. The dimensions of each module are 100 × 100 × 100 mm, which is slightly larger than that of the Nova MW3.

In the upper corner of one of the faces there is the name of the series – Nova, and right above it, on the upper face, there is a small colored LED.

It may light up depending on the signal strength. purple (low signal level), yellow (average signal strength) or blue light (good signal strength).

The lower part of the cube has a lot of ventilation holes, and also received special legs and a cutout for the exit of cables. There is a small notch inside, which houses a pair of Ethernet ports and a power connector. It also contains a label with technical information: serial number, device, factory name of the SSID of the network and its password, MAC address. The connectors are labeled on the plastic. In addition to the WAN port marked with a globe, there is a Gigabit LAN port.

On the right, just above the pocket, there is a barely visible button, but an embossed Reset button that can easily be confused with a vent.

Setting up and connecting Tenda Nova MW6

The manufacturer made his system as user-friendly as possible, so that setting it up would not be particularly difficult even for a technically unprepared user.

1. Connect any of the supplied modules to the Internet using one of the Ethernet ports. This could be a modem or another router. The supplied cable will help when connecting to a nearby source.

2. Connect the same unit to the mains using the supplied power adapter.

3. Install the Tenda WiFi app on your smartphone or tablet (link to Google Play, link to App Store). Its interface is Russified and there shouldn’t be any difficulties in work.

4. Open Wi-Fi settings on a smartphone or tablet with the application installed “Tenda WiFi”… Connect to the Tenda Nova MW network that appears. Usually the name is a combination of the type NOVA_XXXX. You can see its name and password on the sticker at the bottom of the connected module.

5. Further actions are carried out in the application. Open it and click “Setting”…

6. Select the type of connection. You may need to check with your provider for this information. Click on “Further”…

7. Choose a new name for your Wi-Fi network and set a password for it. Click on “Ok”…

8. Tenda Nova MW unit will be rebooted. Open the Wi-Fi settings again on the smartphone or tablet with the app installed “Tenda WiFi” and connect using the access settings you created earlier.

9. Connect other complete units of the system. They should be located in adjacent rooms and simply plugged into the electrical network. The modules will automatically connect to the first one if they are in the zone of a good signal. In order to check the connection of blocks, open the tab Settings applications “Tenda WiFi” and go to the menu item “Add nova”… Follow the instructions on the screen.

As a result, on the tab “My Wi-Fi network” applications “Tenda WiFi” a diagram of the connected units should appear. They must be highlighted green color.

10. Control the Wi-Fi signal strength using the LED located on the top of the unit.

Blue the LED light on the top panel indicates the optimal location of the unit, yellow – about a mediocre signal level, which is fraught with losses in speed. Better to move this block closer to the first one. Purple light indicates a poor signal level or no signal at all. You must select a new location for the block. It is best to position the blocks so that all LEDs are blue.

Working with Tenda Nova MW6 in the proprietary Tenda WiFi application

Unfortunately, Tenda Nova MW6 does not have a web interface. You can work with the system only through the proprietary Tenda WiFi application. Its full functionality can be accessed after connecting all modules. At the first login, you will be prompted to log in using one of the popular social networks. This allows you to set up cloud management and work with your Mesh system from anywhere in the world, not just locally. After authorization, the main control window will open.

Here you can see the configuration of your system and the number of devices connected to it, as well as the download and upload speed. Clicking on any of these elements will open an additional window with information and settings. For example, in the list of connected devices, you can not only see their list, but also give them names.

Clicking on any of the elements of the Mesh system will open an information window about it, where you can indicate its location.

The main work with the Mesh system is done in the “Settings” menu. There are not so many parameters here, each of the elements of the vertical menu expands for more subtle individual settings. Key features: wireless setup, guest network, parental control, internet settings, add nova (new system unit), fast roaming, port forwarding, high performance, smart assistant, uPnP, DHCP server, DNS, firmware update. Tenda will not surprise you with the depth of settings, but everything is basic.

Please note that Tenda Nova MW6 creates a single 2.4 and 5 GHz network. You will not be able to disable one of the bands or select the preferred channel. Customization flexibility has been sacrificed for simplicity. But with Tenda Nova MW6, you can navigate the entire area of the network without worrying about signal interruption and manual switching between segments.

Testing Tenda Nova MW6

Testing a mesh system is best done in a room with an area of 80-100 squares, in which the blocks will be located either one after the other or form a triangle. A working area of 300 m² or 500 m² that the manufacturer accepts can be covered under ideal conditions, without partitions or walls. Testing was carried out both at 2.4 GHz (a device without 5 GHz support was found for this) and at 5 GHz. It is her modules that are considered preferable for interaction with each other. At 5 GHz, the transfer rate between modules reaches 250 Mbps, which is very good.

Tests have shown that as the distance from the main point of turning on the Internet, the speed drops by one and a half to two times. At the same time, at a frequency of 2.4 GHz, the speed is initially lower, which may be due to a clogged range. But even at the farthest point of the room, the signal is preserved and the speed, if not the reference, then acceptable. Smartphones show the maximum signal level over the entire area of the apartment, you can even get access to your network on the street.

In normal mode, with 4-5 devices connected to the module, Nova MW6 consumes up to 5 W, and under maximum load – up to 8 W. As a result, all three modules consume almost as much as one conventional router.

Conclusion

The advantage of Tenda Nova series Mesh systems is ease of setup and ease of use. Compared to the MW3, the MW6 modules we are considering got a slightly more strict, but no less stylish design. The main advantage is working with gigabit Internet. True, client devices will not be able to receive it in full. But Mesh is also a kind of compromise. Users are deprived of additional (sometimes unnecessary functions), lose speed, and get the opportunity to work with a seamless network out of the box with minimal configuration. Tenda Nova MW6 was pleasantly surprised by its low energy consumption and coverage area, and the performance is enough to meet the needs of a large apartment or house.

Buy mesh-system Tenda Nova MW6 (2 blocks)
Buy mesh-system Tenda Nova MW6 (3 blocks)

Tenda Nova MW6 page on the official website of the company
Tenda on Facebook
Tenda on YouTube

[ad_2]

How to find a forgotten Wi-Fi password on a Windows computer: 4 ways

22/12/2020 by ALOK DAS

[ad_1]

♥ BY TOPIC: How to format (erase) a USB flash drive (SSD, HDD) on Windows or Mac (macOS).

How to find the password for the currently connected Wi-Fi network on a Windows computer

If your computer is currently already working on the desired network, the password for which is required to be learned, then this will not be difficult.

On the taskbar, find the network icon. It is usually found on the right side of the tray, next to the volume control, clock and language switch.

Right click on this item and select “Open Network & Internet Settings“.

In section “condition“Select”Configuring adapter parameters“. You can get there by entering the command ncpa…cpl in the window “Execute“(Called by pressing the combination Win + R).

Highlight the current wireless connection.

Right-click on it and select “Condition”…

In the middle of the window that opens, click on the “Wireless properties“.

In the new window, go to the “Safety“, Where the desired Wi-Fi password will be hidden. One has only to check the box for the option “Display entered characters”to display the password as text instead of black circles.

♥ BY TOPIC: How to speed up your Windows 10, 8, 7 PC: 20 tips.

How to find out the password for the Wi-Fi network to which the computer was previously connected

It may well happen that your computer is currently working on a different network. But you need to reveal the password from the network on which it worked earlier. This can also be done relatively easily, but in this case you have to use the command line.

To launch it, enter the query in the Windows search bar “Command line”. In the search results, right-click on the item “Command line” and select “Run as administrator”…

In the opened Command line enter the command:

netsh wlan show profiles

and press “Enter”…

Now enter a new command with your information in it. It might look like this:

netsh wlan show profile name=Yablyk-Public key=clear

Instead “Yablyk-Public” substitute the name of your Wi-Fi network. In the given information, we need the field “Key content“. It is the password we need.

♥ BY TOPIC: How to upload photos and videos to Instagram from Mac or Windows computer.

How to find out the password for a Wi-Fi network in a router (modem)

And then enter the login and password for your router. This data is usually set during device setup, and the factory settings are often indicated on a sticker on the bottom of the router. Quite often, the following pairs are used as the default login and password:

Login: admin
Password: admin

Login: admin
Password: 1234

Login: root
Password: 1234

Most router menus have roughly the same logic. We need to find the security settings of the wireless network. In this section, the password for connecting to it will be indicated, and in clear form.

Problems in this option will appear only if you lose the password to the router. In this case, you will have to reset it to factory settings, which will automatically reset the password from the Wi-Fi network.

♥ BY TOPIC: Windows “con” folder: why can’t I create a directory with this name?

How to find out the password from Wi-Fi using the free WirelessKeyView program

WKey4567#

application WirelessKeyView does not require installation.

There are programs with similar functionality for detecting passwords for Android. But these applications will require root privileges for full system access.

See also:

[ad_2]

Tenda Nova MW3 mesh system review, or how to make seamless Wi-Fi anywhere

18/12/2020 by ALOK DAS

[ad_1]

If not everyone had a computer recently connected to the Internet, now our homes are literally wrapped in networks. After all, access to the World Wide Web is required for a variety of mobile and smart devices, some will refuse to work without the Internet. And the abandonment of wires became a natural step – wireless solutions are not much inferior in speed, but they give much more flexibility in construction.

Buy mesh-system Tenda Nova MW3 (2 blocks)
Buy mesh-system Tenda Nova MW3 (3 blocks)

♥ BY TOPIC: Review of Tenda AC8 router.

What is a Mesh system and what is it for?

Before getting to know this device, let’s first tell you why you need it at all. Mesh architecture is built on the basis of multiple network devices to form a seamless, unified network. In other words, all Mesh-nodes in this network automatically switch from one access point to another without losing speed and time. This makes it possible to walk around the house, apartment or site, watching an online movie, and not be afraid that the signal will be interrupted in some place.

Tenda Nova MW3 can operate at two frequencies: 2.4 and 5 GHz. In the first case, a speed of up to 300 Mbit / s is achieved, and in the second – up to 867 Mbit / s. At the same time, one network is actually deployed, to which the devices are connected, choosing the optimal frequency for themselves.

In the meantime, there is no need to know about it. ”

Specifications Tenda Nova MW3

General characteristics

Main color: white
Placement: indoor
Installation: Desktop or Wall Mounted

Wi-Fi

Chipset: 28 nm Realtek RTL8197FNT @ 600 MHz (2.4 GHz), Realtek RTL8812BR (5 GHz)
Wi-Fi standards: 802.11 a / b / g / n, 802.11ac Wave2
Transmitter frequency: 2.4 GHz: 2400 MHz – 2483 MHz, 5 GHz: 5150 MHz – 5250 MHz or 5725 MHz – 5825 MHz
Simultaneous work in two ranges: yes
Maximum wireless speed: 1167 Mbps
Transmitter output power: 17 dBM
Operating modes: guest network, repeater, access point, wireless client, Wireless Distribution System (WDS), repeater
WiMAX support: no
Connection Security: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK

Antenna

Antenna type: internal
Detachable antenna: no
Number of antennas: 2
Antenna Gain: 3 dBi

Interfaces

Ethernet Ports (LAN): 2
Ethernet port speed: 10/100 Mbps
Other interfaces: no

Food

Power type: 220 V network
PoE Support: No
Working conditions
Working temperature range: 0 ℃ ~ 40 ℃
Humidity: 10% – 90%

Dimensions, weight

Width: 90mm
Length: 90mm
Height: 90mm
Weight: 183 g.

Tenda Nova MW3 complete set

On sale you can find such a Mesh system based on two or three blocks. The manufacturer himself calls them nodes. The number of blocks is indicated by the number after the hyphen in the model name, for example, MW3-2. The entire system is packaged in a black cardboard box with blocks on the front. In the same place, an orange insert marks the general coverage area (for two blocks – 200 meters, for three – 300 meters). On the sides of the box are indicated the technical characteristics of the devices and the place of their production, while the back side shows the layout of the Mesh system, its capabilities and advantages.

Inside the box you can find neatly packed blocks, each with its own power supply, and one network patch cord. The documentation is a collection of Quick Setup Guide, Warranty Card, and License Agreement. The instruction itself immediately includes the text in Russian, so there will be no problems reading it.

Designed by Tenda Nova MW3

The appearance of the modules does not at all correspond to the classic image of a modern WI-Fi router. Blocks are small cubes with rounded edges. Each module measures 90 × 90 × 90 mm and weighs 183 g. The design is stylish and somewhat futuristic. The material is white smooth plastic, but the top surface of the cube is covered with a relief panel. This is a purely design move, but the plate can even be removed if you want to see exceptionally smooth surfaces.

On the front side there is a series logo – Nova and a light indicator below it. It shows both signal strength and operating status. The diode can glow red, yellow or green.

The interfaces are located on the rear panel. There you can see two ports for Ethernet connection (WAN / LAN and LAN), a power connector and a reset button recessed inside. The connectors are signed with lettering embossed in plastic.

On the bottom side there is a pair of fasteners for installing the unit to a horizontal or vertical surface and a label with basic information: mac, serial number, SSID, password, and more.

Setting up and connecting Tenda Nova MW3

1. Connect one of the supplied Nova units to the Internet via the WAN / LAN or LAN port.

2. Connect the same Nova unit to a 220 V electrical network using the supplied power adapter.

It should be noted that connection can be made to any unit from the kit, they are all equivalent. Not all analogues can boast of this.

3. Open the Wi-Fi settings on your smartphone and enter the password for the appeared Wi-Fi point with the name of the “NOVA_XXXX” type.

The password will be indicated on the bottom of the NOVA plug-in box. In addition, you can connect to the created Wi-Fi network by scanning the QR code indicated on the bottom of the device.

4. Download the mobile application “Tenda Wi-Fi” on iPhone, iPad (link) or Android device (link).

5. Run the application and press the button Setting up…

6. Select the type of Internet connection, in our case DHCP. In your case, the type of connection may need to be checked with the provider. Please note that in some cases you may need to enter a username and password. Click on “Further”…

7. Change the Wi-Fi network name and password as desired.

8. Reconnect to the Nova unit using the new username and password.

9. Connect other Nova units in the kit. To do this, install the device in an open area in an adjacent room and connect it to a 220 V network. The remaining plug-in modules will connect to the main one automatically, as soon as they are in the zone of reliable signal reception.

10. Check the connection status by the color of the indicator.

Green: Excellent signal strength.

Yellow: Satisfactory signal level; place the block closer to the first one.

Red: Disabled; place the block closer to the first one.

The architecture of the created network allows connecting up to 6 Tenda Nova modules, solutions from other manufacturers are not supported.

Working with Tenda Nova MW3 app

After setting up Tenda Nova MW3, the full functionality of the application becomes available. Its main page shows the status and number of devices connected to the blocks, as well as the download speed. Clicking on any element opens an additional informative window. Clicking on the access point gives information about it, you can immediately set your location. In the list of connected devices, you can not only look at them, but also give clear names.

The “Settings” menu in this application is almost the most important, making it possible to adjust the work of the Mesh system. In fact, there are not so many tools, but access to them is simple and straightforward.

This menu allows you to change the main network (there is no possibility to choose your own encryption type or Wi-Fi channel), create a guest room with a work schedule, set up periodic access of devices to the network through Parental Control, set priority traffic in QOS, or add fast roaming, set port forwarding.

Testing Tenda Nova MW3

During testing, the coverage of an apartment of about 90 m2 was checked. It should be borne in mind that the limit values of 200 m² and (300 m²) will be achievable in the absence of walls and partitions. In any case, additional modules will cover a larger area than one device. The blocks were placed in different corners of the room. Even at 2.4 GHz with clogged channels, Tenda showed good results, and the drop in speed was due to the use of only two channels – one for communicating with clients, and the other for connecting to other access points. However, at speeds up to 50 Mbps, the drop will be almost imperceptible. When connected at a frequency of 5 GHz, the speed of access to the Internet, even when moving around the block, is practically the same as that provided by a reference high-quality single router.

During the tests, the system worked without freezes and reboots, the simultaneous operation of seven clients with downloading files and watching movies did not affect the stability of the Internet access. It should be noted that the limitation of the WAN port of 100 Mb / s does not make it possible to test the behavior of the mesh system at high speeds. The speed of copying data between devices connected to both the LAN port and Wi-Fi is about 100 Mb / s.

Conclusion

Getting to know such a device turned out to be very interesting. Thanks to him, a home Wi-Fi network is able to significantly improve its quality, both in terms of signal reception conditions and speeds. Thanks to Tenda Nova MW3, it is possible to increase the stability of work, which is important for an ever-increasing number of online services.

It should be noted the ergonomics of the device, it will not be difficult to fit the blocks into the interior. They have a laconic and rather stylish look and do not need to be hidden. The system can be reproached for being too simple, but this approach only plays into the hands of ordinary users who have the opportunity to deploy an effective Mesh network at home.

Buy mesh-system Tenda Nova MW3 (2 blocks)
Buy mesh-system Tenda Nova MW3 (3 blocks)

Tenda Nova MW3 page on the official website of the company
Tenda on Facebook
Tenda on YouTube

[ad_2]

Weak Wi-Fi protection in iPhone: what does it mean and how to fix it?

05/12/2020 by ALOK DAS

[ad_1]

It seems to many users that iOS updates have little effect on the basic logic of the system. But often such functions appear in it that can mislead us, or even scare us.

♥ BY TOPIC: How to check all your hacked passwords right in iOS on iPhone (based on stolen passwords).

For example, many users were surprised to learn that a Wi-Fi network they have used for a long time at work or at home is considered unsafe. This warning started to appear on devices with iOS 14 (and newer). And this notice was noticed by many. What to do in such a situation – hastily change the network settings or just ignore the message? Let’s look at this situation.

A message stating that the Wi-Fi connection has a weak security level appeared on devices with iOS updated to version 14. You can see this warning by following the path Settings → Wi–Fi… A threatening phrase may appear below the current connection: “Weak security” or “Weak defense“. If you click on the connection itself, then the reason for the warning will be described in detail in the window that opens. Apple no longer considers the encryption protocol you are using to be strong, recommending looking at other more secure options.

Traffic encryption when working in Wi-Fi networks is a necessary measure – this is how the transmitted information is protected. There is no point in intercepting and storing encrypted data, and it will not work to replace it if some third parties want to do it. If you work in open wireless networks, attackers will be able to view the history of search queries in the browser, the list of browsers you visited, see the applications being launched, and generally get a lot of valuable information, including the geographic position.

This is why special encryption protocols have been developed. The most famous of them are:

WEP
WPA
WPA2 TKIP
WPA2 AES
WPA3

In this list, items are sorted in increasing order of reliability. In other words, you can use WPA at a risk to yourself, but WPA3 guarantees the highest level of protection. WEP encryption is so outdated that it’s definitely not worth using. There are other intermediate options, most often these are tradeoffs relative to standard options, for example, WPA2 AES Apple considers it safe enough, while WPA2 TKIP – no.

Sometimes you have to resort just to WPA2 AES, because many old routers simply do not know how to work with modern advanced encryption protocols.

♥ BY TOPIC: IPhone geolocation settings: what do they affect and which can be turned off to save battery power?

How do I change Wi-Fi encryption?

You can simply switch to a more secure encryption standard. This will both help protect information and remove the warning in iOS. Just before making the following settings, make sure that you can definitely return to the previous ones if you suddenly need it. Your devices may not be able to connect to the wireless network with the new settings – can you get to the router? This can be done only by connecting to it with a cable. And here is the procedure for changing the encryption:

1. In your browser, enter the address of your router. Usually this is 192.168.0.1 or 192.168.1.1 (sometimes 192.168.100.1).

2. For authorization, enter your credentials to access the device. Initially, the combination admin / admin (root / admin) is installed on the router from the factory, or the login information is indicated on the label on the back / bottom of the device.

3. Go to the wireless network (WLAN) settings. This is where you switch the encryption type. There may be separate settings for 2.4 and 5 GHz networks, please pay attention to this.

4. On the “Encryption” tab, select the option WPA2 AES or WPA3, these are the most reliable options. But WPA3 is not present on all routers. Save your settings.

Please note that authentication mode WPA2 with encryption mode TKIP or TKIP & AES and authentication mode WPA2 with encryption mode AES these are not identical options. Only WPA2 AES is considered a reliable method of protection.

5. Usually, the changes take effect immediately, but for reliability, the router can be overloaded.

After switching the protocol to a more reliable one, iOS notification will disappear.

But only if changes in a dual-band router are made only for one of the frequencies (2.4 or 5 GHz), then the warning will remain. So, thinking about your safety, you should not take partial measures.

See also:

[ad_2]

How to properly use Bluetooth and Wi-Fi in Control Center

02/12/2020 by ALOK DAS

[ad_1]

With the release of iOS 11, Apple has changed how Bluetooth and Wi-Fi can be turned off via Control Center. The two buttons are no longer standard on / off switches. and turn off the wireless connection only after a set period of time.

♥ BY TOPIC: Lines and cells in notes (notebook sheet) on iPhone and iPad: why are they needed and how to do it?

Starting with iOS 11.2, Cupertinos added new informational notifications explaining how the new switches work. Now Bluetooth and Wi-Fi are only disabled temporarily (detailed description below).

Apple has explained in detail how they work in a special instruction (available upon first use), however, those who have not read it cannot understand why some time after turning off after “Command centre” Bluetooth and Wi-Fi are turned on again.

New notifications appear the first time you use the switches in “Control Center”…

On subsequent use, help messages will be displayed at the top of the screen “Disable Wi-Fi networks in the access zone until tomorrow” and “Disconnect the Bluetooth device until tomorrow”…

Let’s take a look at the modes of operation of the Wi-Fi and Bluetooth switches in the Control Center.

♥ BY TOPIC: iPhone new, demo or refurbished (ref, CPO) – how to check by model number.

Why are the Bluetooth and Wi-Fi icons in Control Center blue, white, and transparent?

Wi-Fi and Bluetooth are on (blue switches)

♥ BY TOPIC: How to block a number on an iPhone, how to view and remove numbers from the blacklist.

Wi-Fi and Bluetooth are partially disabled until tomorrow (white switches)

In this case, the Wi-Fi network for accessing the Internet will be disabled, but Wi-Fi will still remain available for AirDrop, tethering and geolocation.

With regard to Bluetooth, this mode turns off all connected accessories and prohibits the connection of other Bluetooth accessories. In the meantime, Bluetooth will continue to work with Apple Watch, Apple Pencil, Handoff, and tethering.

It should be borne in mind that in this mode, the Wi-Fi and Bluetooth switches can turn on earlier if:

Wi-Fi:

The Wi-Fi toggle switch has been switched to the on position. in “Control Center”;
You are connected to Wi-Fi via “Settings” → Wi-Fi;
You have come or arrived to a new place;
It was 5:00 am local time;
Your iOS device has been restarted.

Bluetooth:

The Bluetooth toggle switch has been switched to the on position. in “Control Center”;
You have connected to Bluetooth via “Settings” → Bluetooth;
It was 5:00 am local time;
Your iOS device has been restarted.

♥ BY TOPIC: How to open two pages at the same time in a browser on an iPhone or iPad?

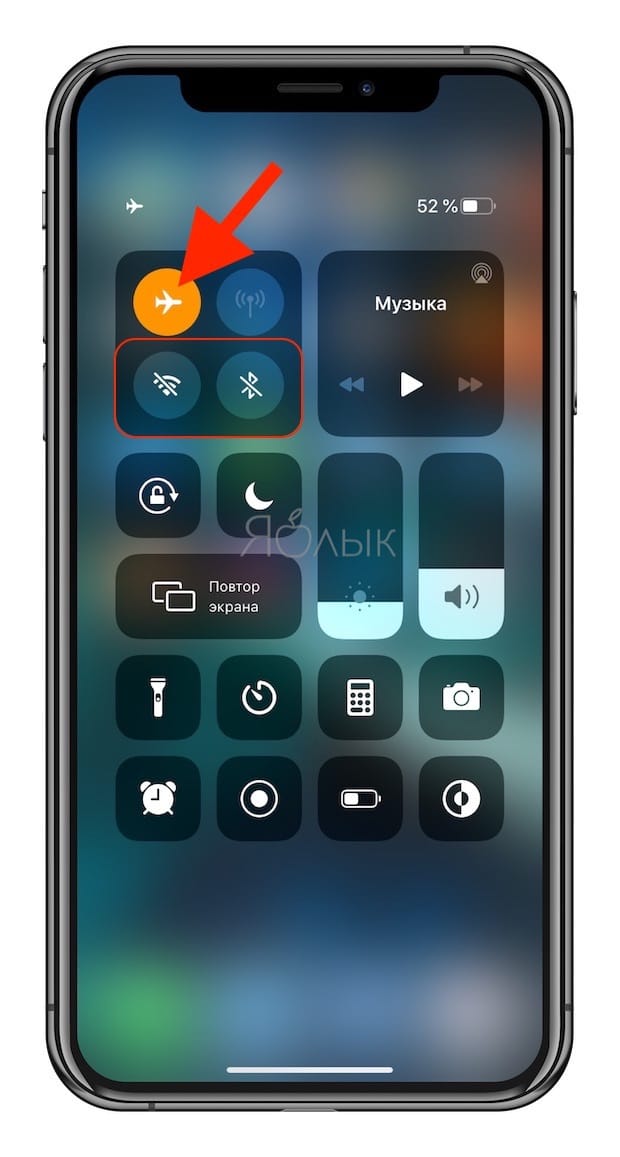

Wi-Fi and Bluetooth are completely disabled (switch icons are transparent and crossed out)

To turn off Wi-Fi and Bluetooth in Control Center, you must first turn on Airplane mode… This mode completely deactivates Bluetooth and Wi-Fi without regard to the “rules” mentioned above. This shutdown is completely identical to deactivating Bluetooth and Wi-Fi in the application. “Settings”…

See also:

[ad_2]

How to enable tethering and share the Internet (Wi-Fi) from an iPhone or iPad

26/10/2020 by ALOK DAS

[ad_1]

Everyone knows that the iPhone is a multifunctional device. However, not everyone is aware that the gadget can act as a full-fledged portable access point – router – for other mobile and desktop equipment. “Sharing” the Internet from an “apple” communicator or tablet is actually very simple.

♥ BY TOPIC: How to download a video from VK (VKontakte) to an iPhone or iPad and watch without the Internet.

First, you need to make sure that the device is connected to the mobile Internet. In this article, we describe in detail how to do this and consider common problems.

For further work, it is advisable to choose either an unlimited tariff plan. Otherwise, you can lose a significant amount from your account in just a dozen minutes of using the Internet.

♥ BY TOPIC: How to use Wikipedia on iPhone as a travel guide.

How to enable tethering and share the Internet (Wi-Fi) from an iPhone or iPad

Since iOS 13, the section interface Modem mode in the application Settings on iPhone and iPad has been changed.

Power button Modem mode disappeared, replaced by a switch Allow others…

With the option enabled Allow others The iPhone will be able to share the Internet not only with devices that use the same Apple ID in iCloud (without entering a password), but also with any other device (with entering a password).

With the option disabled Allow others The iPhone will only be able to share Internet to devices that use the same Apple ID in iCloud without having to enter a password.

On an iPhone with iOS 12 or older Modem mode turned on by the corresponding switch along the way: Settings → Modem mode;

With the option enabled Allow others it is strongly recommended to password protect network access.

♥ BY TOPIC: New gestures in iOS for working with text on iPhone and iPad that you might not know about.

What to do if the Modem mode item is not in the Settings

It happens, however, that Modem mode missing in the settings. Then you need to take the following steps:

1… To begin with, you need to make sure that the data transmission network is working on the device – mobile Internet (instructions). If it works, but the mode still does not appear, then go to the next step;

2… Go to Settings and follow the path cellular → Cellular data network → Cellular data (for previous versions of iOS, the path is slightly different: Cellular → Data Options → Cellular Data Network → Cellular Data);

3… Here you need to fill in the fields in the sections Cellular data and Modem mode… There you will need to enter the APN, Username and Password of your mobile operator. The operator usually sends this data automatically when installing the SIM card. You can also clarify them by calling the operator, calling your tariff plan.

For example, for the Belarusian MTS, the data is as follows:

APN: mts
Username: mts
Password: mts

APN details, username and password of some Russian, Belarusian and Ukrainian operators can be found on this page.

4… If the mode does not appear after entering the data, then the device must be rebooted. After reboot, turn on Modem mode, select item Turn on Wi-Fi and set a password. A successful connection will be indicated by a blue bar at the top of the screen.

How to find out Wi-Fi parameters (speed, channel, etc.) in macOS in one click

24/09/2020 by ALOK DAS

[ad_1]

Menu bar (macOS element where date and time are located, quick access to functions like Bluetooth and Wi-Fi and so on) has more capabilities than it seems at first glance. With the press of just one button, you can get additional – and sometimes very important – information.

ON THIS TOPIC: How to quickly open any system preferences in macOS – 5 ways.

So, for example, when testing Wi-Fi networks on macOS, you may find useful additional information available at the press of a key ⌥Option (Alt)… Here’s how it works.

With the release of macOS Big Sur, the Control Center icon appeared in the menu bar, which displays quick options for Wi-Fi, Bluetooth, display and sound settings, and function switches Do not disturb and Screen Repeat…

Discover Command centreby clicking on the corresponding button in the macOS menu bar, on the keyboard, press and hold the Option (Alt) button, and then click on the Wi-Fi section.

As you can see in the screenshot above, this option provides much more useful information about the capabilities of the wireless network. Delighted with our knowledge of such subtleties, macOS brings down a mountain of statistics on us: here information from the category “once a year, let it come in handy” (for example, IP address, channel characteristics), and terms that only specialists understand (RSSI, MCS index), and quite specific values (for example, the network speed expressed in megabits).

Let’s also pay attention to additional functions – for example, Open Wireless Diagnostics… A very useful thing if you have problems with wireless connection. The system will check the wireless module, put the report on the desktop … and at the same time send it to Apple for the benefit of humanity.

Normal press without key:

With the ⌥Option (Alt) key held down:

In older versions of macOS this works directly from the menu bar, i.e. ⌥Option (Alt) + click on wifi icon in menu bar…

Normal press without key:

With the ⌥Option (Alt) key held down:

If you don’t mind continuing to explore other valuable macOS features, check out a few “related” articles below.

See also:

[ad_2]

How to pass the Wi-Fi password to guests without telling it (QR code)

24/07/2020 by ALOK DAS

[ad_1]

There are several ways to share a Wi-Fi network without giving a network name or password (like this one). One of them is using a QR code.

♥ BY TOPIC: New in iOS 14: How to hide unwanted application pages from the home screen on iPhone and iPad.

You can generate a QR code that will allow friends and family to automatically connect to a Wi-Fi network while scanning using a dedicated website. The QR code can then be printed and placed in a desk drawer or, for example, in a guest room.

This method is suitable for users who are often visited by guests, but who do not want to leave their Wi-Fi password in plain sight.

♥ BY TOPIC: In iOS 14, at the top of the screen, a green or orange indicator lights up: what are they for?

How to generate a Wi-Fi QR code for guests

In order to create a QR code for a Wi-Fi network, you need to visit the qifi.org website, developed by programmer Evgeny Golovy. On the site, you need to enter the network name and password, and then click the Generate button.

The web application will generate a QR code that you can then print or save as a screenshot.

♥ BY TOPIC: What QR codes the iPhone camera reads in iOS: 10 use cases.

How to connect to a Wi-Fi network with a QR code

Guests with an iPhone or iPad running iOS 11 or later simply need to point their device’s camera at a QR code and they will automatically connect to the Wi-Fi network.

Users of older Apple smartphones can use QR Reader for iPhone or Avira QR Code Barcode Scanner.

Android users will need to install the ZXing Barcode Scanner or any other application based on the ZXing library that allows you to scan barcodes.

♥ BY TOPIC: How to reduce the consumption of mobile traffic on the iPhone. 13 tips.

Is it safe to give your Wi-Fi password to this web application?

Yes. According to the developer, the application “displays a QR code in your browser on your computer, so that the Wi-Fi network remains as secure as it was before.” In support of his words, the developer suggests that you familiarize yourself with the application code available on the Github portal.

♥ BY TOPIC: Hidden iPhone Features: 25 iOS Features You May Not Know About.

Is it safe to provide guests with a QR code?

Sharing a QR code with one of the guests is even safer than giving the actual Wi-Fi password in plain text.

See also:

[ad_2]

How to forget Wi-Fi network on iPad, iPhone and Mac

13/07/2020 by ALOK DAS

[ad_1]

Apple devices have an excellent feature, thanks to which they remember the Wi-Fi networks to which they connect. This allows devices to automatically reconnect when they are within range of the network. But sometimes it takes a device to forget about this network.

♥ BY TOPIC: How to transfer Wi-Fi password to someone else’s iPhone or iPad “in one tap”, without opening it.

Why forget Wi-Fi network on iPad, iPhone and Mac

For example, once you used a public free Wi-Fi point and after that, iPhone, iPad and Mac automatically connect to this network even when you are at home with a high-quality Internet connection. In this situation, to connect to a home network every time you have to manually switch between known Wi-Fi points.

Another option: you just need to connect to the network with a different password.

♥ BY TOPIC: How to transfer guests a Wi-Fi password without naming it (QR code).

How to forget Wi-Fi network on iPhone and iPad

Open the app on your iPhone or iPad “Settings” and follow these simple steps to let your device forget about your Wi-Fi network.

1. Select a section Wifi.

2. Next to the network icon, click the icon “I”.

3. Click “Forget this network”.

Note: If you have a controlled device that is tied to a school or employer, then you won’t be able to forget the Wi-Fi network.

♥ BY TOPIC: How to block all calls from unknown and hidden numbers on the iPhone: 2 ways.

How to Forget Wi-Fi Network on Mac

To forget a specific Wi-Fi network on your Mac, you need to start by going along the path

Apple Menu () → System Settings in the menu bar. Then do the following:

1. Click “Net”.

2. Select a Wi-Fi network in the left column and click “Additionally” at the bottom right of the window.

3. Verify that the desired Wi-Fi network is listed. Now select it and click the icon “-“ next to her.

4. Confirm the desire to delete the network by pressing the button Delete.

See also:

[ad_2]

How to transfer the password from Wi-Fi to someone else’s iPhone or iPad “in one tap”, without opening it

13/04/2020 by ALOK DAS

[ad_1]

Starting with iOS 11, Apple has implemented many automatic features related to initial system setup and account authorization. This also applies to Wi-Fi networks – you can now use one tap to connect new devices running iOS 11 (and newer) to your Wi-Fi.

♥ BY TOPIC: How to turn off the sound (clicks) of the keyboard on the iPhone or iPad.

How to transfer a password to someone else’s iPhone or iPad “in one tap” without naming a Wi-Fi password

The user interface resembles the pairing process with AirPods. If you try to connect a nearby iPad or iPhone to Wi-Fi, a notification will be displayed on a device that is already on the network. For example, iPhone X is a device that is already on the network, and iPhone 11 is a gadget trying to connect to it.

iPhone 11 (trying to connect to Wi-Fi):

In this case, the password input window will be displayed on iPhone 11, and on the iPhone X – a message about the possibility of providing a password.

iPhone X (already on a Wi-Fi network, may give access):

Next with a single click on the button Share Password you can send the Wi-Fi password to the iPhone 11 and after a short delay the password field on the gadget will fill up and the device will be instantly connected to the network.

♥ BY TOPIC: How to turn on the modem mode and distribute the Internet (Wi-Fi) from iPhone or iPad.

Thus, users no longer have to look for a password on the router case or enter the code on someone else’s device. It is enough to tell the guest the name of the Wi-Fi network and confirm the connection on your device. The only condition is that the devices of the guest and the “owner” of the network must be unlocked and be nearby.

See also:

[ad_2]

Wi-Fi does not work on iPhone or iPad: possible solutions to the problem

13/01/2020 by ALOK DAS

[ad_1]

Among all the problems faced by owners of mobile gadgets, poor performance or a complete lack of Wi-Fi connection is one of the most common. Usually the fault is the incorrect user settings of one of the devices (router or smartphone), but sometimes it is not possible to resolve the current situation without intervention at the hardware level.

♥ BY TOPIC: How to reduce the consumption of mobile traffic on the iPhone. 13 tips.

Below we consider the most effective Wi-Fi treatment methods in terms of the ratio of the total number of attempts to successful ones. That is, it is these methods that most often help users solve the problem with this type of wireless connection.

♥ BY TOPIC: Why it is not necessary to close (unload) applications on the iPhone and iPad from the multitasking panel.

Wi-Fi on iPhone or iPad is bad or not working, what should I do?

Eliminate external causes (interference, covers)

First of all, you should make sure that there is no interference with the signal. If there is no microwave oven between the router and the smartphone, in which there are several working radiotelephones, then it should pass unhindered. Most often, the problem lies in covers and bumpers, which were made by shortsighted craftsmen from metal materials – eliminating such an accessory can remove the issue of unstable Wi-Fi connections.

Table of materials with different levels of interference:

♥ BY TOPIC: How do I find out which application consumes the most battery on my iPhone or iPad?

On iPhone or iPad (reboot, “forget network”, reset network settings, flashing)

Naturally, the first thing to do is to make a full range of measures to eliminate a possible error in the iOS settings, moving along the list from the simplest to the most complex:

1. Turn off and turn on Wi-Fi in the Control Center, reboot the device.

2. If the iPhone or iPad does not connect correctly to the Wi-Fi network, try to “forget” the network. To do this, open the Settings app, go to the Wi-Fi section and click on the “i “ next to the signal strength icon.

3. If this does not help, reset the network. To do this, go along the path: Settings → The main → Reset and click on Reset Network Settings.

4. In some cases, you can resort to the procedure Software Recovery. About what is different Software Update from Software Recovery, as well as how this process is carried out, we described in detail in this material.

♥ BY TOPIC: 20 iPhone features that most users can turn off.

On the router (router)

1. Reboot the router. No matter how trite it may sound, but restarting the router in some cases really helps to improve the wireless network on iOS.

2. Change the encryption method (often for this reason, iOS devices do not want to connect to Wi-Fi).

3. Change the channel and region.

4. Reset the router (router) to the factory settings.

♥ BY TOPIC: Why iPhone and iPad slow down and turn off in the cold.

Folk remedies

However, if you have an old iPhone 3GS or iPhone 4 with a broken screen and an inoperative Home button on your hands, you can risk his health and do one of the methods of temperature exposure tested by thousands of users. Namely – to heat the smartphone with a hairdryer to a critical temperature and then reboot, or vice versa – freeze the iPhone in the refrigerator (and this is not a joke).

Sometimes this gives a positive but temporary effect and confirms the presence of hardware problems.

Contact a service center

If the iPhone still refuses to connect to the Internet, then with a high degree of probability there are mechanical damage or factory defects of the corresponding module. Such a problem should not be fixed independently at home and it is better to contact a service center.

See also:

[ad_2]

Slow (slows down) Internet (3G / 4g / Wi-Fi) on iPhone: the main reasons

11/01/2020 by ALOK DAS

[ad_1]

For many of us, a smartphone is the main means of access to the World Wide Web, so the speed of the Internet on a mobile device is very important. However, at times the speed of mobile Internet can be significantly reduced, which is reflected in the slow loading of pages in the browser, downloading files or delays in playing video and audio. Such situations can arise for a number of reasons, for example, due to improper location of the home router, problems with the public Wi-Fi network or problems with the service provider.

♥ BY TOPIC: GPS does not work on iPhone, how to fix it.

Slow Internet – Poor Wireless Home Networking

The improper location of your home router is one of the most common unstable or weak wireless signals. The range of the Wi-Fi signal is approximately 150 m in terrain without barriers and 50 m indoors. Large physical objects (walls, doors, floors, large cabinets, etc.) can block the signal, so if you are at a great distance from the router, for example, in the farthest room or outside the house, the signal strength is significantly reduced.

You should not place the Wi-Fi router in niches, closed cabinets or behind any bulk (thick, wide) objects.

The strength of the Wi-Fi signal can be checked by the icon in the status bar on the smartphone – if it is “full”, it means that the signal is powerful and the speed of the Internet has a different reason, and if it is “empty” – the signal is weak. Try to get closer to the router and your internet speed should increase. If the signal is still weak, then you have placed the router in the wrong place.

In addition, the Wi-Fi signal level can be checked using various applications. The closer the signal level to zero, the better, for example, a value of -43 dBm is better than -57 dBm.

♥ BY TOPIC: How to pass Wi-Fi password to guests without naming it (QR code).

Internet slows down – Wi-Fi network congestion (change channel)

Another reason for the slow Internet may be overload in the Wi-Fi network. Routers transmit a signal on a specific local channel, however, if your neighbors’ routers use the same channel, network congestion occurs and as a result, the Internet speed drops for everyone. This can be a significant problem, especially in multi-apartment buildings, where a large number of routers are located in a relatively small area. In this situation, it is worth using utilities that scan nearby Wi-Fi networks and determine the channels they use. This way, you can figure out which channel in your environment is the least used and configure Wi-Fi accordingly.

In the cases indicated in the screenshots below, to configure Wi-Fi, select channel 11, 12, 13 or 14:

And in this case, channel 11 is overloaded:

Unfortunately, we could not find such an application for iOS, we provide links for Mac and Android:

♥ BY TOPIC: Why it is not necessary to close (unload) applications on the iPhone and iPad from the multitasking panel.

Slow Internet on iPhone – home appliances can be a source of interference to a Wi-Fi signal

Microwaves, wireless doorbells, telephones, and other equipment can interfere with signals from routers operating at 2.4 GHz. Most modern routers support both 2.4 GHz and 5 GHz frequency.

In the latter case, the wireless signal is less susceptible to interference, so it is better to change the router settings to work in the 5 GHz band. But first, make sure that all your devices support this frequency. Routers that do not support two or three ranges will not be able to switch between them, so you need to choose one frequency. If you still decide to stay in the 2.4 GHz band, make sure that the router is located away from devices that can cause interference.

♥ BY TOPIC: In which smartphone is the best camera in 2020 – Top 10.

Internet slows down – you are connected to a slow network

One of the most obvious reasons for the low speed of the Internet is connecting to a slow network. In a home network, other applications and devices that share bandwidth between themselves can affect the speed of the Internet. Broadcasting movies, downloading videos, or installing operating system updates that your relatives, friends, or neighbors who use your Wi-Fi hotspot can affect Internet speed.

When using a public Wi-Fi network, Internet speed may vary. There are a huge number of public Wi-Fi networks to which a mobile device is arbitrarily connected. The connection may remain even if you are in the coverage area of another network. That is, if your favorite coffee house offers excellent Wi-Fi, this does not mean that you will be connected to this network every time.

In this case, you can specify the priority Wi-Fi networks in the settings of your iPhone or Android smartphone. Thus, the device will always be connected to the selected wireless networks and only as a last resort to other free Wi-Fi access points.

In order for the iPhone or iPad to automatically connect to the selected network, go to along the path Settings → Wifi, select the network and set the switch Auto connect in position Included. Accordingly, the position Turned off will prevent the device from automatically connecting to this Wi-Fi network.

♥ BY TOPIC: How to turn on the modem mode and distribute the Internet (Wi-Fi) from iPhone or iPad.

Weak internet – you are using a slow VPN service

Cybersecurity experts recommend using a VPN when connecting to free Wi-Fi networks. Such services encrypt the connection between your smartphone and access point, preventing data interception. However, not many people know that VPN applications can affect the speed of the Internet, especially free ones. If you see a slowdown, try temporarily disabling the VPN and see if the situation changes.

Most of the best VPN providers release paid apps for the iPhone and Android, which offer faster speeds than free alternatives and are also more secure.

♥ BY TOPIC: 70 interesting facts about IT-technologies.

Slows down mobile Internet on iPhone – poor 3G / 4G (LTE) coverage

Most owners of mobile devices prefer to use Wi-Fi rather than mobile Internet in order to save money and battery life. 4G is positioned as a high-speed mobile Internet, but this is not always true. Various factors can influence the signal strength, for example, the distance to the nearest cell tower, where you are (outdoors or indoors), and even weather conditions. In some cases, you will have to return to the slower 3G Internet, and in some, even be left without it.

For example, you live in a large city and constantly use the 4G LTE network. Accordingly, in the iPhone Settings in the section Cell data → Data options → Voice and data You set the LTE (4G) parameter, but on the weekend you left for the outskirts of the city, where the 4G signal is very weak. In this case, you need to switch the iPhone settings to work with 3G or 2G.

♥ BY TOPIC: How to reduce the consumption of mobile traffic on the iPhone. 13 tips.

Slow internet – your smartphone is not efficient enough

Slow internet may be a sign that your smartphone is not up to the task. For applications and websites to work over the years, more and more resources are required, so the hardware of outdated or budget smartphones with less productive processors and a small amount of RAM can “slow down” when processing web pages or graphics in an online game. As a result, it seems that the speed of the Internet has decreased, although in reality this is not so.

Similar problems can be observed even on brand new expensive smartphones, if you work with a large number of applications that consume significant amounts of traffic. Obsolete or poorly written applications can also slow down the work of a smartphone, so use new versions of programs, uninstall unnecessary ones and keep track of which applications you allow to run in the background.

See also:

[ad_2]

How to find (remember) your Wi-Fi password on Mac

How to find the password for the currently connected Wi-Fi network on a Windows computer

How to find out the password for a Wi-Fi network to which the computer was previously connected

How to find out the password for a Wi-Fi network in a router (modem)

How to find out the password from Wi-Fi using the free WirelessKeyView program

Attention! Tenda Prize Draw!

Features of Tenda Nova MW5s

Functional features of Tenda Nova MW5s

Specifications Tenda Nova MW5s

Complete set Tenda Nova MW5s

Setting up and connecting Tenda Nova MW5s

Performance testing

Conclusion

Attention! Tenda Prize Draw!

Tenda E30 specifications

Appearance and delivery set of Tenda E30

Tenda E30 device capabilities

Installing and configuring Tenda E30

Conclusion

Main characteristics and features of Tenda TX3

Packing and delivery of Tenda TX3

Designed by Tenda TX3

Setting up and managing Tenda TX3

How to control Tenda TX3 via mobile app

Tenda TX3 in real conditions

Conclusion

How Wi-Fi Speed ​​Tests Work

Ping speed

Download speed

Download speed

Common test mistakes

Do not test just once

Do not test during peak hours

Don’t test in the wrong place

During testing, do not download files to other devices

Remember to restart your computer

Use the right testing tools

Do not test internet speed with VPN enabled

Why Test Wi-Fi Speed?

Main features of Tenda 4G03

Packing and delivery of Tenda 4G03

Tenda 4G03 design

Configuring and managing Tenda 4G03

How to work with Tenda 4G03 via mobile app

Tenda 4G03 router testing

Conclusion

How is Wi-Fi different from the Internet?

Understanding the connection problem

What if you don’t have an internet connection?

EZVIZ TY2 camera set

EZVIZ TY2 camera appearance

EZVIZ TY2 Camera Features

Setting up the EZVIZ TY2 camera

EZVIZ TY2 Camera Specifications

Price and where to buy the EZVIZ TY2 camera?

Conclusion

How to find (remember) Wi-Fi password on Mac

What is a Mesh System?

Tenda Nova MW6 features

Specifications

Tenda Nova MW6 complete set

Designed by Tenda Nova MW6

Setting up and connecting Tenda Nova MW6

Working with Tenda Nova MW6 in the proprietary Tenda WiFi application

Testing Tenda Nova MW6

Conclusion

How to find the password for the currently connected Wi-Fi network on a Windows computer

How to find out the password for the Wi-Fi network to which the computer was previously connected

How to find out the password for a Wi-Fi network in a router (modem)

How to find out the password from Wi-Fi using the free WirelessKeyView program

What is a Mesh system and what is it for?

Specifications Tenda Nova MW3

Tenda Nova MW3 complete set

Designed by Tenda Nova MW3

Setting up and connecting Tenda Nova MW3

Working with Tenda Nova MW3 app

Testing Tenda Nova MW3

Conclusion

How do I change Wi-Fi encryption?

Why are the Bluetooth and Wi-Fi icons in Control Center blue, white, and transparent?

How Wi-Fi Speed Tests Work
